# Haskell Communities and Activities Report

## Preface

This is the 28th edition of the Haskell Communities and Activities Report. There are a number of completely new entries but a large chunk of the old entries have not been updated. However, we have two old entries which have resurfaced, so there is hope that other old entries will receive updates on the next edition.

As usual, fresh entries – either completely new or old entries which have been revived after a short temporarily disappearance – are formatted using a blue background, while updated entries have a header with a blue background.

Entries on which no new activity has been reported since 2013 have been dropped completely. Please do revive such entries next time if you do have news on them.

A call for new HCAR entries and updates to existing ones will be issued on the Haskell mailing lists in late September/early October.

Now enjoy the current report and see what other Haskellers have been up to lately. Any feedback is very welcome, as always.

Mihai Maruseac, University of Massachusetts Boston, US
Alejandro Serrano Mena, Utrecht University, Netherlands

## 1  Community

 Report by: Michael Snoyman Status: experimental

Haskellers is a site designed to promote Haskell as a language for use in the real world by being a central meeting place for the myriad talented Haskell developers out there. It allows users to create profiles complete with skill sets and packages authored and gives employers a central place to find Haskell professionals.

Haskellers is a web site in maintenance mode. No new features are being added, though the site remains active with many new accounts and job postings continuing. If you have specific feature requests, feel free to send them in (especially with pull requests!).

Haskellers remains a site intended for all members of the Haskell community, from professionals with 15 years experience to people just getting into the language.

## 2  Books, Articles, Tutorials

 Report by: Edward Z. Yang

There are many academic papers about Haskell and many informative pages on the HaskellWiki. Unfortunately, there is not much between the two extremes. That is where The Monad.Reader tries to fit in: more formal than a wiki page, but more casual than a journal article.

There are plenty of interesting ideas that might not warrant an academic publication—but that does not mean these ideas are not worth writing about! Communicating ideas to a wide audience is much more important than concealing them in some esoteric journal. Even if it has all been done before in the Journal of Impossibly Complicated Theoretical Stuff, explaining a neat idea about “warm fuzzy things” to the rest of us can still be plain fun.

The Monad.Reader is also a great place to write about a tool or application that deserves more attention. Most programmers do not enjoy writing manuals; writing a tutorial for The Monad.Reader, however, is an excellent way to put your code in the limelight and reach hundreds of potential users.

### 2.2  Oleg’s Mini Tutorials and Assorted Small Projects

 Report by: Oleg Kiselyov

#### Combinators for parsing several streams at once

Parsing combinators, from the basic |Text.ParserCombinators.ReadP| to iteratees, obtain their input from an implicit stream. It is this implicitness that makes the combinators easily compose and convenient to use. It also makes the parsing of two streams at the same time seemingly impossible. A characteristic example is merging two sorted streams, where the streams are read in a complex, statically unpredictable pattern.

With iteratees at least, the problem is solvable. The solution maintains all the advantages of iteratees: incremental processing, buffering, precise resource control and the prevention of resource leaks. It surprising how trivial the solution is, requiring no changes to the iteratee implementation nor even the knowledge of it. The key is observation is that Iteratee is a monad transformer and hence can be iterated. Laying iteratee monad transformers upon each other gives an us access to several streams at once. The solution thus extends to other parser combinators that are transformers.

#### Leibniz equality can, after all, be made injective

The paper “Typing Dynamic Typing” (Baars and Swierstra, ICFP 2002) demonstrated the first implementation and application of so-called Leibniz equality witnesses in Haskell: newtype EQU a b = EQU{subst:: forall c. c a -> c b}

Given a term |eq :: EQU a b|, |subst eq :: forall c. c a -> c b| will convert a value |c a| – that is, the value of type |a| in the context represented by the type constructor |c| – into |c b|. In other words, in any context |c|, the type |a| can be substituted with the type |b|, which is how Leibniz defined equality. The Leibniz equality term |EQU| is a poor-man GADT, and that’s why it is useful. Unlike GADT, it is implementable in any language with the rank-2 polymorphism.

The Baars and Swierstra paper showed a good example of using Leibniz equality, to implement type checkers and type inferencers. For this task we also need to establish the equality of two arrow types: two arrow types are equal if their components are equal: eq_arr :: EQU a1 a2 -> EQU b1 b2
-> EQU (a1->b1) (a2->b2)
Such a function |eq_arrow| is easily implementable. Yet sometimes (see for example, “Implementing Cut Elimination: A Case Study of Simulating Dependent Types in Haskell” by Chen, Zhu and Xi, PADL’04) we need the reverse direction: if two arrow types are equal, their argument types are equal as well (ditto for the result types). This reverse direction, which relies on arrow being injective, is impossible to obtain without extra features. It is here were GADTs show more power over Leibniz equality.

It turns out that with type functions, Leibniz equality is injective. The key is a realization that type-constructor polymorphism extends to the polymorphism over arbitrary type functions. Leibniz injectivity is also the example of type functions seemingly more expressive than type-class functional dependencies. Despite a long-standing challenge no one has shown how to implement injective Leibniz equality using just functional dependencies.

 Report by: Natalia Muska Participants: Michael Snoyman, Edward Kmett, Simon Peyton Jones and others Status: active

The School of Haskell has been available since early 2013. It’s main two functions are to be an education resource for anyone looking to learn Haskell and as a sharing resources for anyone who has built a valuable tutorial. The School of Haskell contains tutorials, courses, and articles created by both the Haskell community and the developers at FP Complete. Courses are available for all levels of developers.

Two new features were added to the School of Haskell. First is the addition of Disqus for commenting on each tutorial and highlighting other potentially interesting tutorials. Second is the inclusion of autorun tags. This enables users to run a snippet as soon as they open a tutorial.

Currently 3150 tutorials have been created (a 125%increase from this time last year) and 441 have been officially published (a 53%increase from this time last year). Some of the most visited tutorials are Text Manipulation Attoparsec, Learning Haskell at the SOH, Introduction to Haskell - Haskell Basics, and A Little Lens Starter Tutorial. Over the past year the School of Haskell has averaged about 16k visitors a month.

All Haskell programmers are encouraged to visit the School of Haskell and to contribute their ideas and projects. This is another opportunity to showcase the virtues of Haskell and the sophistication and high level thinking of the Haskell community.

Visit the School of Haskell here https://www.fpcomplete.com/school

### 2.4  Agda Tutorial

 Report by: Péter Divianszky Participants: Ambrus Kaposi, students at ELTE IK Status: experimental

Agda may be the next programming language to learn after Haskell. Learning Agda gives more insight into the various type system extensions of Haskell, for example.

The main goal of the tutorial is to let people explore programming in Agda without learning theoretical background in advance. Only secondary school mathematics is required for the tutorial.

## 3  Implementations

### 3.1  The Glasgow Haskell Compiler

 Report by: Austin Seipp Participants: many others

GHC 7.10.1 was released in March this year, shipping several major improvements, and development continues to steam forward as it always does. However, things have been relatively quiet for most of 2015 so far, as people have simply been working away. Currently our master branch does not heavily diverge much from GHC 7.10, but that could change soon!

#### Major changes in GHC 7.10.1

When we shipped GHC 7.10, we incorporated some major new features - but not without some major decision making, it turns out. These included:

Making Applicative a superclass of Monad
Yes, finally!

Generalizing Prelude operators
Known in various circles as “The Burning-Bridges Proposal” (BBP) or “The Foldable Traversable Proposal” (FTP), this proposal offered to generalize many Prelude operations to functions in |Data.Traversable| and |Data.Foldable|. However, this plan stirred up a relatively large amount of debate regarding deviations from the standard, communicating plans, and the implications will be. In the end, Simon Peyton Jones and Simon Marlow sought feedback from the community, and ended up making a final decision in February, after hundreds of input votes from the community, and decided to move forward with the plan.

Distributed programming, |static| values, and reflection
Mathieu Boespflug and Facundo Dominguez at TweagIO completely reimplemented their old proposal for |static| values, primarily intended to support Cloud Haskell, and it was merged into GHC 7.10. The support as it stands should be experimental, but the new implementation is much simpler and easier to understand. This is part of a larger project involving runtime reflection and distributed programming

Binary literals
Herbert Valerio Riedel implemented the |-XBinaryLiterals| language extension which finally closes the syntax gap relative to other languages which allow to write base-2 literals such as |0b11001001|.

Partial type signatures
Thomas Winant and Dominique Devriese implemented partial type signatures for GHC. A partial type signature is a type signature that can contain wildcards, written as underscores. These wildcards can be types unknown to the programmer or types he doesn’t care to annotate. The type checker will use the annotated parts of the partial type signature to type check the program, and infer the types for the wildcards. A wildcard can also occur at the end of the constraints part of a type signature, which indicates that an arbitrary number of extra constraints may be inferred. Whereas |-XTypedHoles| allow holes in your terms, |-XPartialTypeSignatures| allow holes in your types!

Preliminary backpack support
Edward Yang has been working tirelessly on support for Backpack features in GHC. GHC 7.10 shipped with some preliminary code to support it, including signature file support and some Cabal support, but we have a new plan for GHC 7.12, with new syntax and a new implementation strategy. You can find out more by checking out the algorithm specification (https://github.com/ghc/ghc/blob/master/docs/backpack/algorithm.pdf). Work is currently proceeding on the ghc-backpack branch.

Reimplemented GMP-based |Integer| backend
Herbert Valerio Riedel completely reimplemented the |integer-gmp| backend, and is now shipping it on all Tier 1 platforms. This should make interoperation with GMP (and C libraries that depend on GMP) radically simpler, while being easier to maintain.

DWARF support for debugging symbols
Peter Wortmann has gotten the first piece of his long-term work in place: support for GHC to emit DWARF symbols to object files, so debuggers can utilize it. The preliminary support works for simple cases, but is very experimental! (Case in point: it was broken in 7.10.1 due to #10236 – https://ghc.haskell.org/trac/ghc/ticket/10236)

API Annotations and other GHC API changes
Alan Zimmerman has added API Annotations to the AST, so that the precise layout of the original source code can be regenerated. An initial library making use of these to fully round trip Haskell source code is at https://github.com/alanz/ghc-exactprint. This will be updated shortly after 7.10.2 comes out, and then used by HaRe to handle the low level AST manipulation. Also, the landmines have been removed from the AST, so that traversals over it no longer need to tiptoe around embedded |panic| values. Andrew Gibiansky has added more parser entry points, so that tools can now parse fragments of source code.

Typechecker plugins
Iavor Diatchki, Eric Seidel and Adam Gundry implemented preliminary support for extending the typechecker using plugins, making it easier to experiment with custom constraint solvers.

#### Upcoming plans for the next release

The current plan is to steam forward to the end of the year, and begin to get ready for a new release, probably in February of 2016. We have some tentative plans marked below - and some of them are huge! In particular - we may ship GHC 8.0 next year, if we’re going to change the entire Core language!

#### Libraries, source language, type system

Signature sections
Lennart Augustsson is implementing |(:: ty)| to work the same as |( x -> x :: ty)|

ApplicativeDo
Now that |Applicative| is a superclass of |Monad|, Simon Marlow has implemented a new extension for GHC, which will allow do notation to be used in the context of |Applicative|, not just |Monad|. The patch for review is available at https://phabricator.haskell.org/D729, and Simon Marlow believes it’s ready for review and merge.

After countless more discussions and several revisions, Adam Gundry implemented the new |-XOverloadedRecordFields| extension for GHC – again! – but this time with a newer design – and the first piece of the implementation is up for review at https://phabricator.haskell.org/D761 – we’re hoping to review it and integrate it soon.

Using an SMT Solver as a type-checker plugin
Iavor Diatchki is working on implementing support for using SMT solvers in the typechecker, via the plugins mechanism. Currently, the main focus for this is improved support for reasoning with type-level natural numbers, but it opens the doors to other interesting functionality, such as supported for lifted (i.e., type-level) |( -- Bad & -- -- Bad & -- )|, and |(||)|, type-level bit-vectors (perhaps this could be used to implement type-level sets of fixed size), and others.

Kind equality, kind coercions, and dependently
typed Core Richard Eisenberg (with support from Simon PJ and Stephanie Weirich, among others) is implementing a change to the Core language, as described in “System FC with explicit kind equality”. When this work is complete, all types will be promotable to kinds, and all data constructors will be promotable to types. This will include promoting type synonyms and type families. As the details come together, there may be other source language effects, such as the ability to make kind variables explicit. It is not expected for this to be a breaking change – the change should allow strictly more programs to be accepted. This can also go down as one of the larger changes in recent memory – https://phabricator.haskell.org/D808 is the biggest Phabricator review we’ve done to date, changing over 10,000 lines of code in the compiler!

Injective type families
Jan Stolarek (with support from Richard Eisenberg and Simon PJ) is working on adding injective type families to GHC. With this feature it will be possible to annotate declaration of a type family - closed, open or associated with class - with injectivity annotation and GHC will be able to use that information during type checking.

David Terei has overhauled how overlapping instances work under Safe Haskell. This greatly expands the number of regular Haskell programs that work under Safe Haskell and makes use of the new per-instance overlapping instances added in GHC 7.10. It also unifies how overlapping instances work when inferring a modules safety, vs. explicit use of |-XSafe|.

David Terei and Richard Eisenberg are currently discussing possible changes to how Roles should work to allow them to be included in the safe-language of Safe Haskell. These are early discussions with no changes yet planned, but they’d love any feedback. The wiki page contains a wealth of information. Both the background and possible paths forward.

#### Back end and runtime system

CPU-specific optimizations
Austin Seipp is currently investigating the implementation of CPU-specific optimisations for GHC, including new -march and -mcpu flags to adjust tuning for a particular processor. Right now, there is some preliminary work towards optimizing copies on later Intel machines. There’s interest in expanding this further as well.

Changes to static closures for faster garbage
collection Edward Yang is working on an overhaul of how static closures represented at runtime to eliminate some expensive memory dereferences in the GC hotpath. The initial results are encouraging: these changes can result in an up to 8%in the runtime of some GC heavy benchmarks. See ticket #8199.

DWARF-based stack tracing
Peter Wortmann and Arash Rouhani (with support from the Simons) are working on enabling GHC to now use the DWARF debugging information it generates. This should allow us to obtain stack traces and do profiling without the need for instrumentation, directly from Haskell executables.

An Improved LLVM Backend
that ships with every major Tier 1 platform.

Native code generator for PowerPC 64-bit
Peter Trommler has been working on an extension of the PowerPC native code backend to support 64-bit Linux systems. There are two 64-bit ELF ABI versions. The implementation of ABI version 1, which is mostly used by big endian systems, is fairly stable and support for ABI version 2, which is used by systems with POWER8 processors running in little endian mode, is currently under testing. See ticket #9863.

#### Frontend, build-system, and miscellaneous changes

Shaking up GHC [Shake]. Andrey Mokhov (with support from Neil Mitchell, Simon Marlow and Simon PJ) is working on a new |Shake|-based build system for GHC. The goal is to make it much more understandable, maintainable and convenient to use than the current |make|-based one. It is also expected that the new build system will be faster, because |Shake| allows to express build dependencies more accurately.

#### Development updates, joining in and a big Thank You!

In the past several months, GHC has seen a surge of community involvement, and a great deal of new contributors.

As ever, there is a ton of stuff in the future for us to do. If you want something done — don’t wait, it might take a while. You should join us instead!

 Report by: Kiwamu Okabe Participants: John Meacham, Hiroki Mizuno, Hidekazu Segawa, Takayuki Muranushi Status: experimental

#### What is it?

Ajhc is a Haskell compiler, and acronym for “A fork of jhc”.

Jhc (http://repetae.net/computer/jhc/) converts Haskell code into pure C language code running with jhc’s runtime. And the runtime is written with 3000 lines (include comments) pure C code. It’s a magic!

Ajhc’s mission is to keep contribution to jhc in the repository. Because the upstream author of jhc, John Meacham, can’t pull the contribution speedily. (I think he is too busy to do it.) We should feedback jhc any changes. Also Ajhc aims to provide the Metasepi project with a method to rewrite NetBSD kernel using Haskell. The method is called Snatch-driven development http://www.slideshare.net/master_q/20131020-osc-tokyoajhc.

Ajhc is, so to speak, an accelerator to develop jhc.

#### Demonstrations

NetBSD kernel’s HD Audio sound driver has interrupt handler. The interrupt handler of the demo is re-written by Haskell language using Ajhc.

At the demo, run following operations. First, set breakpoint at the interrupt of finding headphone, and see Haskell function names on backtrace. Second, set breakpoint s_alloc() function, that allocate area in Haskell heap. Make sure of calling the function while anytime running kernel. Nevertheless, playing wav file does not break up.

The source code is found at https://github.com/metasepi/netbsd-arafura-s1 The interrupt handler source code at https://github.com/metasepi/netbsd-arafura-s1/blob/fabd5d64f15058c198ba722058c3fb89f84d08a5/metasepi/sys/hssrc/Dev/Pci/Hdaudio/Hdaudio.hs#L15.

The touchable cube application is written with Haskell and compiled by Ajhc. In the demo, the application is breaked by ndk-gdb debugger when running GC. You could watch the demo source code at https://github.com/ajhc/demo-android-ndk.

The demo is running code that compiled with Ajhc on Cortex-M3 board, mbed. It’s a simple RSS reader for reddit.com, showing the RSS titles on Text LCD panel. You could watch the demo detail and source code at https://github.com/ajhc/demo-cortex-m3.

The demo is running Haskell code without any OS. Also the clock exception handler is written with Haskell.

#### Usage

You can install Ajhc from Hackage.

$cabal install ajhc$ ajhc --version
ajhc 0.8.0.9 (9c264872105597700e2ba403851cf3b
236cb1646)
compiled by ghc-7.6 on a x86_64 running linux
$echo 'main = print "hoge"' > Hoge.hs$ ajhc Hoge.hs
testCaseSteps "Multi-step test" $\step -> do step "Step 1" -- do something step "Step 2" -- do something else As a reminder from the last HCAR, Tasty-HUnit no longer uses the original HUnit package; instead it reimplements the relelvant subset of its API. • The way Tasty-Golden works internally has changed. There are a few consequences (see the CHANGELOG for details); an interesting one is that you can now update golden files in parallel. Also, if a golden file doesn’t exist, it will be created automatically. You’ll see a message like UnboxedTuples: OK (0.04s) Golden file did not exist; created This is convenient when adding new tests. #### Further reading • For more information about Tasty and how to use it, please consult the README at http://bit.ly/tasty-home • Tasty has a mailing list http://bit.ly/tasty-ml and an IRC channel (#tasty on FreeNode), where you can get help with Tasty. #### 6.5.5 Automatic type inference from JSON  Report by: Michal J. Gajda Status: stable This rapid software development tool json-autotype interprets JSON data and converts them into Haskell module with data type declarations.$ json-autotype input.json -o JSONTypes.hs

The generated declarations use automatically derived Aeson class instances to read and write data directly from/to JSON strings, and facilitate interaction with growing number of large JSON APIs.

Generated parser can be immediately tested on an input data:

$runghc JSONTypes.hs input.json The software can be installed directly from Hackage. It uses sophisticated union type unification, and robustly interprets most ambiguities using clever typing. The tool has reached maturity this year, and thanks to automated testing procedures it seems to robustly infer types for all JSON inputs considered valid by Aeson. The author welcomes comments and suggestions at <mjgajda at gmail.com>. #### Further reading #### 6.5.6 Exference  Report by: Lennart Spitzner Status: experimental, active development Exference is a tool aimed at supporting developers writing Haskell code by generating expressions from a type, e.g. Input: (Show b) => (a -> b) -> [a] -> [String] Output: \ b -> fmap (\ g -> show (b g)) Input: (Monad m, Monad n) => ([a] -> b -> c) -> m [n a] -> m (n b) -> m (n c) Output: \ b -> liftA2 (\ i j -> liftA2 (\ o p -> b p o) j (sequenceA i)) There are two primary use-cases for Exference: • In combination with typed holes: The programmer can insert typed holes into the source code, retrieve the expected type from ghc and forward this type to Exference. If a solution, i.e. an expression, is found and if it has the right semantics, it can be used to fill the typed hole. • As a type-class-aware search engine. For example, Exference is able to answer queries such as |Int -> Float|, where the common search engines like hoogle or hayoo are not of much use. In contrast to Djinn, the well known tool with the same general purpose, Exference supports a larger subset of the Haskell type system - most prominently type classes. (Djinn’s environment many contain type classes, but using them in queries will not really work.) This comes at a cost, however: Exference makes no promise regarding termination. In fact, the problem tackled by Exference is an undecidable one (a draft of a proof can be found in the pdf below). Future work includes optimizations (reducing the memory requirements most importantly) and extending the dictionary. Contributions are welcome. Try it out by on IRC(freenode): exferenceBot is in #exference. #### Further reading ## 7 Libraries, Applications, Projects ### 7.1 Language Features #### 7.1.1 Conduit  Report by: Michael Snoyman Status: stable While lazy I/O has served the Haskell community well for many purposes in the past, it is not a panacea. The inherent non-determinism with regard to resource management can cause problems in such situations as file serving from a high traffic web server, where the bottleneck is the number of file descriptors available to a process. The left fold enumerator was one of the first approaches to dealing with streaming data without using lazy I/O. While it is certainly a workable solution, it requires a certain inversion of control to be applied to code. Additionally, many people have found the concept daunting. Most importantly for our purposes, certain kinds of operations, such as interleaving data sources and sinks, are prohibitively difficult under that model. The conduit package was designed as an alternate approach to the same problem. The root of our simplification is removing one of the constraints in the enumerator approach. In order to guarantee proper resource finalization, the data source must always maintain the flow of execution in a program. This can lead to confusing code in many cases. In conduit, we separate out guaranteed resource finalization as its own component, namely the ResourceT transformer. Once this transformation is in place, data producers, consumers, and transformers (known as Sources, Sinks, and Conduits, respectively) can each maintain control of their own execution, and pass off control via coroutines. The user need not deal directly with any of this low-level plumbing; a simple monadic interface (inspired greatly by the pipes package) is sufficient for almost all use cases. Since its initial release, conduit has been through many design iterations, all the while keeping to its initial core principles. Since the last HCAR, we’ve released version 1.2. This release introduces two changes: it adds a stream fusion implementation to allow much more optimized runs for some forms of pipelines, and uses the codensity transform to provide better behavior of monadic bind. Additionally, much work has gone into conduit-combinators and streaming-commons, both of which are packages introduced in the last HCAR. There is a rich ecosystem of libraries available to be used with conduit, including cryptography, network communications, serialization, XML processing, and more. The library is available on Hackage. There is an interactive tutorial available on the FP Complete School of Haskell. You can find many conduit-based packages in the Conduit category on Hackage as well. #### Further reading #### 7.1.2 lens  Report by: Edward Kmett Participants: many others Status: very actively developed The lens package provides families of lenses, isomorphisms, folds, traversals, getters and setters. That is to say, it provides a rich, compositional vocabulary for separating “what you want to do” from “what you want to do it to” built upon rigorous foundations. Compared to other libraries that provide lenses, key distinguishing features for lens are that it comes “batteries included” with many useful lenses for the types commonly used from the Haskell Platform, and with tools for automatically generating lenses and isomorphisms for user-supplied data types. Also, included in this package is a variant of Neil Mitchell’s uniplate generic programming library, modified to provide a |Traversal| and with its combinators modified to work with arbitrary traversals. Moreover, you do not need to incur a dependency on the lens package in order to supply (or consume) lenses or most of the other lens-like constructions offered by this package. #### Further reading #### 7.1.3 folds  Report by: Edward Kmett Status: actively developed This package provides a playground full of resumable comonadic folds and folding homomorphisms between them. #### Further reading #### 7.1.4 machines  Report by: Edward Kmett Participants: Anthony Cowley, Shachaf Ben-Kiki, Paul Chiusano, Nathan van Doorn Status: actively developed Ceci n’est pas une pipe This package exists to explore the design space of streaming calculations. Machines are demand-driven input sources like pipes or conduits, but can support multiple inputs. You design a Machine by writing a Plan. You then construct the machine from the plan. Simple machines that take one input are called a Process. More generally you can attach a Process to the output of any type of Machine, yielding a new Machine. More complicated machines provide other ways of connecting to them. Typically the use of machines proceeds by using simple plans into machine Tees and Wyes, capping many of the inputs to those with possibly monadic sources, feeding the rest input (possibly repeatedly) and calling run or runT to get the answers out. There is a lot of flexibility when building a machine in choosing between empowering the machine to run its own monadic effects or delegating that responsibility to a custom driver. #### Further reading #### 7.1.5 exceptions  Report by: Edward Kmett Participants: Gabriel Gonzales, Michael Snoyman, John Weigley, Mark Lentczner, Alp Mestanogullari, Fedor Gogolev, Merijn Verstraaten, Matvey B. Aksenov Status: actively developed This package was begun as an effort to define a standard way to deal with exception handling in monad transformer stacks that could scale to the needs of real applications in terms of handling asynchronous exceptions, could support GHC now that |block| and |unblock| have been removed from the compiler, and which we could reason about the resulting behavior, and still support |mocking| on monad transformer stacks that are not built atop |IO|. #### Further reading #### 7.1.6 Faking even more dependent types!  Report by: Richard Eisenberg Participants: Jan Stolarek Status: released The singletons package enables users to fake dependent types in Haskell via the technique of singletons. In brief, a singleton type is a type with exactly one value; by knowing the value, you also know the type, and vice versa. See “Dependently typed programming with singletons” (Haskell ’12) for more background. Jan Stolarek and Richard Eisenberg have released a major update to singletons, which will include processing of a much larger subset of Haskell, including |case| and |let| statements, |where| clauses, anonymous functions, and classes. Since the release (of version 1.0), more improvements have been made to the HEAD version, available at http://github.com/goldfirere/singletons. Of particular interest, the library exports a |promote| function that will take ordinary term-level function definitions and promote them to type family definitions. After the update, this will allow users to write term-level code in a familiar style and have that code work on promoted datatypes at the type level. #### Further reading #### 7.1.7 Type checking units-of-measure  Report by: Richard Eisenberg Participants: Takayuki Muranushi Status: released The units package, available on Hackage, allows you to type-check your Haskell code with respect to units of measure. It prevents you from adding, say, meters to seconds while allowing you to add meters to feet and dividing meters by seconds. A |Double| can be converted into a dimensioned quantity only by specifying its units, and a dimensioned quantity can be converted to an ordinary |Double| only by specifying the desired units of the output. The set of units is fully extensible. The package, in fact, exports units only for dimensionless quantities. Instead, the companion units-defs package contains definitions for SI dimensions and units, as well as the US customary units. Because of units’s extensibility, the package is suitable for use outside of physics applications, such as finance or keeping your apples apart from your bananas. The magic under the hood uses lots of type families and no functional dependencies. One upshot of this design is that user code can generally be free of constraints on types. Here is some sample code: kinetic_energy :: Mass -> Velocity -> Energy kinetic_energy m v = redim$ 0.5 *| m |*| v |*| v
g_earth :: Acceleration
(deriveLenses ''Address) The next thing to do is to specify a default record containing the default values: defaults = Name "Doaitse" Haskell [] (Address "Utrecht" "Princetonplein") Next we define the parser for the options, by specifying each option: oName = name option ( "name", pString, "Name") <> ints options ( "ints", pNaturalRaw, "Some numbers") <> prefers choose [( "agda", Agda, "Agda preferred") ,( "haskell", Haskell, "Haskell preferred") ] <> address field ( city option ( "city", pString, "Home city") <> street option ( "street" ,pString, "Home Street" ) ) Finally when running this parser by the command |run (( defaults) <> mkP oName)| on the string |("–int=7 –city=Tynaarlo -i 5 –agda -i3 "++"-street=Zandlust")| the result is Name { name_ = Doaitse , prefers_ = Agda , ints_ = [7,5,3] , address_ = Address { city_ = Tynaarlo , street_ = Zandlust} } If you make a mistake in the list of options, automatic error reporting and correction steps in and you get the following message: ./OptionsDemo --street=Zandlust -nDoaitse -i3 --city=Tynaarlo --name [Char] optional Name --ints Int recurring Some numbers Choose at least one from( --agda required Agda preferred --haskell required Haskell preferred ) --city [Char] optional Home city --street [Char] optional Home Street -- -- Correcting steps: -- Inserted "-a" at position 70 -- expecting one of [ "--agda", "--agda=", "--haskell", "--haskell=", "--ints=", "--ints", "-i", "-h", "-a"] -- Inserted EOT at position 70 -- expecting EOT #### Features • Combinators for easily describing parsers which produce their results online, do not hang on to the input and provide excellent error messages. As such they are “surprise free” when used by people not fully aware of their internal workings. • Parsers “correct” the input such that parsing can proceed when an erroneous input is encountered. • The library basically provides the to be preferred applicative interface and a monadic interface where this is really needed (which is hardly ever). • No need for try-like constructs which make writing Parsec based parsers tricky. • Scanners can be switched dynamically, so several different languages can occur intertwined in a single input file. • Parsers can be run in an interleaved way, thus generalizing the merging and permuting parsers into a single applicative interface. This makes it e.g. possible to deal with white space or comments in the input in a completely separate way, without having to think about this in the parser for the language at hand (provided of course that white space is not syntactically relevant). #### Future plans Future versions will contain a check for grammars being not left-recursive, thus taking away the only remaining source of surprises when using parser combinator libraries. This makes the library even greater for use in teaching environments. Future versions of the library, using even more abstract interpretation, will make use of computed look-ahead information to speed up the parsing process further. #### Contact If you are interested in using the current version of the library in order to provide feedback on the provided interface, contact <doaitse at swierstra.net>. There is a low volume, moderated mailing list which was moved to <parsing at lists.science.uu.nl> (see also http://www.cs.uu.nl/wiki/bin/view/HUT/ParserCombinators). #### 7.3.3 HERMIT  Report by: Andrew Gill Participants: Andrew Farmer, Neil Sculthorpe, Ryan Scott Status: active The Haskell Equational Reasoning Model-to-Implementation Tunnel (HERMIT) is an NSF-funded project being run at KU (→9.7), which aims to improve the applicability of Haskell-hosted Semi-Formal Models to High Assurance Development. Specifically, HERMIT uses a Haskell-hosted DSL and a new refinement user interface to perform rewrites directly on Haskell Core, the GHC internal representation. In the project we want to demonstrate the equivalences between efficient Haskell programs, and their clear specification-style Haskell counterparts. In doing so there are several open problems, including refinement scripting and managing scaling issues, data representation and presentation challenges, and understanding the theoretical boundaries of the worker/wrapper transformation. We have reworked KURE, a Haskell-hosted DSL for strategic programming, as the basis of our rewrite capabilities, and constructed the rewrite kernel making use of the GHC Plugins architecture. A journal writeup of the KURE internals is available in JFP. As for interfaces to the kernel, we currently have a command-line REPL, which we are replacing this summer with a GHCi DSL, called Black Shell. We have used HERMIT to successfully mechanize many smaller examples of program transformations, drawn from the literature on techniques such as concatenate vanishes, tupling transformation, and worker/wrapper. #### Further reading #### 7.3.4 Generalized Algebraic Dynamic Programming  Report by: Christian Höner zu Siederdissen Status: usable, active development Generalized Algebraic Dynamic Programming provides a solution for high-level dynamic programs. We treat the formal grammars underlying each DP algorithm as an algebraic object which allows us to calculate with them. Below, we describe three highlights, our systems offers: #### Grammars Products We have developed a theory of algebraic operations over linear and context-free grammars. This theory allows us to combine simple “atomic” grammars to create more complex ones. With the compiler that accompanies our theory, we make it easy to experiment with grammars and their products. Atomic grammars are user-defined and the algebraic operations on the atomic grammars are embedded in a rigerous mathematical framework. Our immediate applications are problems in computational biology and linguistics. In these domains, algorithms that combine structural features on individual inputs (or tapes) with an alignment or structure between tapes are becoming more commonplace. Our theory will simplify building grammar-based applications by dealing with the intrinsic complexity of these algorithms. We provide multiple types of output. LaTeX is available to those users who prefer to manually write the resulting grammars. Alternatively, Haskell modules can be created. TemplateHaskell and QuasiQuoting machinery is also available turning this framework into a fully usable embedded domain-specific language. The DSL or Haskell module use ADPfusion (→7.12.1) with multitape extensions, delivering “close-to-C” performance. #### Set Grammars Most dynamic programming frameworks we are aware of deal with problems over sequence data. There are, however, many dynamic programming solutions to problems that are inherently non-sequence like. Hamiltonian path problems, finding optimal paths through a graph while visiting each node, are a well-studied example. We have extended our formal grammar library to deal with problems that can not be encoded via linear data types. This provides the user of our framework with two benifits. She can now easily encode problems based on set-like inputs and obtain dynamic programming solutions. On a more general level, the extension of ADPfusion and the formal grammars library shows how to encode new classes of problems that are now gaining traction and are being studied. If, say, the user wants to calculate the shortest Hamiltonian path through all nodes of a graph, then the grammar for this problem is: s (f <<< s % n ||| g <<< n ... h) which states that a path s is either extended by a node n, or that a path is started by having just a first, single node n. Functions f and g evaluate the cost of moving to the new node. gADP has notions of sets with interfaces (here: for s) that provide the needed functionality for stating that all nodes in s have been visited with a final visited node from which an edge to n is to be taken. #### Automatic Outside Grammars Our third contribution to high-level and efficient dynamic programming is the ability to automatically construct Outside algorithms given an Inside algorithm. The combination of an Inside algorithm and its corresponding Outside algorithm allow the developer to answer refined questions for the ensemble of all (suboptimal) solutions. The image below depicts one such automatically created grammar that parses a string from the Outside in. T and C are non-terminal symbols of the Outside grammar; the production rules also make use of the S and B non-terminals of the Inside version. One can, for example, not only ask for the most efficient path through all cities on a map, but also answer which path between two cities is the most frequented one, given all possible travel routes. In networks, this allows one to determine paths that are chosen with high likelihood. #### Further reading #### 7.3.5 parsers  Report by: Edward Kmett Participants: Nathan Filardo, Dag Odenall, Mario Blazevic, Tony Morris, Tim Dixon, Greg Fitzgerald Status: actively developed This package provides a common lingua franca for working with parsec-like parsing combinator libraries, such that the combinators support being lifted over monad transformers. Instances are provided for use with the parsec Parser and base’s ReadP, and it is used by trifecta (→7.3.6) to provide its suite of parsing combinators. Notably, many of the combinators have been modified to only require the use of Alternative rather than MonadPlus, enabling some base Parser instances to operate more efficiently. #### Further reading #### 7.3.6 trifecta  Report by: Edward Kmett Participants: Austin Seipp, Nathan Filardo, John Weigley Status: actively developed This package is designed to explore the space of “human scale” parsers for programming languages. That is to say, it isn’t optimized for parsing protocols or other huge streaming datasets, but rather to provide nice error messages for files that are usually written by hand by human beings. Trifecta supports clang-style colored diagnostics with markup denoting locations, spans and fixits for user code. It builds on top of the parsers (→7.3.5) framework for most of its parsing combinators. Much of the focus of trifecta is on supporting functionality beyond basic parsing, such as syntax highlighting, that arise once you have a programming language. In the long term, we plan to support built-in CPP, auto-completion and parser transformers to support Haskell-style layout. #### Further reading ### 7.4 Mathematics #### 7.4.1 Rlang-QQ  Report by: Adam Vogt Status: active development Rlang-QQ is intended to make it easier to call R from Haskell programs. This allows access to a large number of R packages for graphing, statistics or other uses. Rlang-QQ provides a quasiquoter which runs the R interpreter and tries to translate values between the two languages. Haskell expressions can be referenced from R using syntax like(take 10 [1.0 .. ]). Haskell variables can also be passed in by prefixing them with hs_: hs_x refers to x. Values that can be taken out of a Haskell x :: Chan t are accessible using ch_x. When the R code has an assignment such as hs_x <- f(), the quasiquote evaluates to an HList record which contains the result from f().

Future work may include supporting the serialization of more data types between the two languages, passing data between the two runtimes in-memory instead of through files, and doing inference when possible on the R-code to restrict the types of the Haskell values that are serialized or deserialized.

#### 7.4.2  order-statistics

 Report by: Edward Kmett Status: stable

This package extends Bryan O’Sullivan’s statistics package with support for order statistics and L-estimators.

An order statistic is simply a position in the sorted list of samples given just the size of the sample. L-estimators are linear combinations of order-statistics.

L-estimators are used in robust statistics to collect statistics that are robust in the presence of outliers, and have the benefit that you can jackknife them without changing their asymptotics.

This package provides a compositional vocabulary for describing order statistics.

#### 7.4.3  linear

 Report by: Edward Kmett Participants: Anthony Cowley, Ben Gamari, Jake McArthur, John Weigley, Elliott Hird, Eric Mertens, Niklas Haas, Casey McCann Status: actively developed

This package provides ‘low-dimensional’ linear algebra primitives that are based explicitly on the notion that all vector spaces are free vector spaces, and so are isomorphic to functions from some basis to an underlying field. This lets us use representable functors, which are represented by such a basis to encode all of our linear algebra operations, and provides a natural encoding for dense vector spaces.

A nice |lens|-based API is provided that permits punning of basis vector names between different vector types.

#### 7.4.4  algebra

 Report by: Edward Kmett Status: experimental

This package provides a large cross section of constructive abstract algebra.

Notable theoretical niceties include the fact that covectors form a Monad, linear maps form an Arrow, and this package bundles a rather novel notion of geometric coalgebra alongside the more traditional algebras and coalgebras.

#### 7.4.5  semigroups and semigroupoids

 Report by: Edward Kmett Participants: Nathan van Doorn, Mark Wright, Adam Curtis Status: stable

The semigroups package provides a standard location to obtain the notion of |Semigroup|.

The semigroupoids package provides the notion of a |Semigroupoid|, which is a |Category| that does not necessarily provide |id|. These arise in practice for many reasons in Haskell.

Notably, we cannot express a product category with the existing implementation of |Data Kinds|.

But more simply, there are many types for which their Kleisli category or Cokleisli category lacks identity arrows, because they lack |return| or |extract|, but could otherwise pass muster.

With semigroupoids 4.0, this package has now come to subsume the previous groupoids and semigroupoid-extras packages.

#### 7.4.6  Arithmetics packages (Edward Kmett)

 Report by: Edward Kmett Participants: Sjoerd Visscher, Austin Seipp, Daniel Bergey, Chris Schneider, Ben Gamari Status: actively developed

• The compensated package provides compensated arithmetic for when you need greater precision than the native floating point representation can provide. A |Compensated Double| has over 100 bits worth of effective significand. Unlike other “double double” variants in other languages, this construction can be iterated. A |Compensated (Compensated Double)| gives over 200 bits worth of precision.

However, not all |RealFloat| operations have yet been upgraded to work in full precision.

• The approximate package (with Sjoerd Visscher and Austin Seipp) provides a notion of approximate result values and intervals with log-domain lower bounds on confidence. It also provides fast piecewise-rational, but monotone increasing approximate versions of log and exp that execute many times faster than the native machine instructions that are suitable for use in machine learning.

• The intervals package (with Daniel Bergey and Chris Schneider) provides basic interval arithmetic. An |Interval| is a closed, convex set of floating point values.

We do not control the rounding mode of the end points of the interval when using floating point arithmetic, so be aware that in order to get precise containment of the result, you will need to use an underlying type with both lower and upper bounds like |CReal|.

• The log-domain package (with Ben Gamari) provides log domain floats, doubles and complex numbers with an emphasis on supporting probabilities biased towards conservative lower bounds.

 Report by: Edward Kmett Participants: Alex Lang, Takayuki Muranushi, Chad Scherrer, Lennart Augustsson, Ben Gamari, Christopher White Status: actively developed

This package provides an intuitive API for Automatic Differentiation (AD) in Haskell. Automatic differentiation provides a means to calculate the derivatives of a function while evaluating it. Unlike numerical methods based on running the program with multiple inputs or symbolic approaches, automatic differentiation typically only decreases performance by a small multiplier.

AD employs the fact that any program |y = F(x)| that computes one or more values does so by composing multiple primitive operations. If the (partial) derivatives of each of those operations is known, then they can be composed to derive the answer for the derivative of the entire program at a point.

This library contains at its core a single implementation that describes how to compute the partial derivatives of a wide array of primitive operations. It then exposes an API that enables a user to safely combine them using standard higher-order functions, just as you would with any other Haskell numerical type.

There are several ways to compose these individual Jacobian matrices. We hide the choice used by the API behind an explicit “Mode” type-class and universal quantification. This prevents the end user from exploiting the properties of an individual mode, and thereby potentially violating invariants or confusing infinitesimals.

We are actively seeking ways to better support unboxed vectors, new modes, new primitives, and better-optimized forms for gradient descent.

Features:

• Provides many variants on forward- and reverse- mode AD combinators with a common API.
• Type-level “branding” is used to both prevent the end user from confusing infinitesimals and to limit unsafe access to the implementation details of each mode.
• Each mode has a separate module full of combinators, with a consistent look and feel.

#### 7.4.8  integration

 Report by: Edward Kmett Participants: Adrian Keet Status: actively developed

This package provides robust numeric integration via tanh-sinh quadrature. “Tanh-Sinh quadrature scheme is the fastest known high-precision quadrature scheme, especially when the time for computing abscissas and weights is considered. It has been successfully employed for quadrature calculations of up to 20,000-digit precision. It works well for functions with blow-up singularities or infinite derivatives at endpoints.”

#### 7.4.9  contravariant

 Report by: Edward Kmett Participants: Dag Odenhall, Merijn Verstraaten Status: stable

This package provides the notion of a contravariant functor, along with various forms of composition for contravariant functors and Day convolution.

#### 7.4.10  categories

 Report by: Edward Kmett Participants: Gwern Branwen Status: stable

This package provides a number of classes for working with Category instances with more structure in Haskell. In many ways this package can be viewed as an alternative to working with Arrows, as working with a CCC can provide you with much more fuel for optimization.

#### 7.4.11  bifunctors

 Report by: Edward Kmett Status: stable

This package provides a standard location to retrieve the notion of a Bifunctor, Bifoldable or Bitraversable data type.

#### 7.4.12  profunctors

 Report by: Edward Kmett Participants: Shachaf Ben-Kiki, Elliott Hird Status: stable

This package provides profunctors, which act like an |Arrow| you don’t necessarily know how to put together.

These form the bedrock upon which |lens| (→7.1.2) is built.

With profunctors 4.0 we’ve merged together the contents of the older profunctors, profunctor-extras and representable-profunctors packages.

In addition to the basic notion of a profunctor, we also provide the category of collages for a profunctor, notions of representable and corepresentable profunctors, along with weaker notions of |Strong| and |Choice| that correspond to various |Arrow| classes, profunctor composition.

 Report by: Edward Kmett Participants: Dave Menendez, Gabor Greif, David Luposchainsky, Sjoerd Visscher, Luke Palmer, Nathan van Doorn Status: stable

You can work with this package using Dominic Orchard’s codo-notation, or use them directly.

The kan-extensions (→7.4.15) package also provides a transformer that can turn a comonad into a monad.

#### 7.4.14  recursion-schemes

 Report by: Edward Kmett Status: stable

This package provides generalized bananas, lenses and barbed wire based on the recursion schemes that came out of the constructive algorithmics community over the years.

In addition to the standard recursion schemes, all of their distributive laws can be made compositional, enabling the creation of such interesting and impractical beasts as the zygohistomorphic prepromorphism.

#### 7.4.15  kan-extensions

 Report by: Edward Kmett Status: stable

This package provides Kan extensions, Kan lifts, various forms of the Yoneda lemma, and (co)density (co)monads.

These constructions have proven useful for many purposes:

• Codensity can be used to accelerate the performance of code written for free monads or to correct the assocativity of an “almost-monad” that fails the associativity law, as it performs a sort of fusion on |(>>=)| operations.
• |CoT| can be used to turn any |Comonad| into a |Monad| transformer.
• Various forms of the Yoneda lemma give rise to ways to enforce “Functor fusion”.

### 7.5  Numerical Packages and High Performance Computing

#### 7.5.1  arb-fft

 Report by: Ian Ross Status: actively developed

This package started as an experiment to see how close a pure Haskell FFT implementation could get to FFTW (“the Fastest Fourier Transform in the West”). The result is a library that can do fast Fourier transforms for arbitrarily sized vectors with performance within a factor of about five of FFTW.

Future plans mostly revolve around making things go faster! In particular, the next thing to do is to write an equivalent of FFTW’s genfft, a metaprogramming tool to generate fast straight-line code for transforms of specialised sizes. Other planned work includes implementing real-to-complex and real-to-real transforms, multi-dimensional transforms, and some low-level optimisation.

#### 7.5.2  hblas

 Report by: Carter Tazio Schonwald Participants: Stephen Diehl and Csernik Flaviu Andrei Status: Actively Developed

hblas is high level, easy to extend BLAS/LAPACK FFI Binding for Haskell.

hblas has several attributes that in aggregate distinguish it from alternative BLAS/LAPACK bindings for Haskell.

1. Zero configuration install
2. FFI wrappers are written in Haskell
3. Provides the fully generality of each supported BLAS/LAPACK routine, in a type safe wrapper that still follows the naming conventions of BLAS and LAPACK.
4. Designed to be easy to extend with further bindings to BLAS/LAPACK routines (because there are many many specialized routines!)
5. Adaptively choses between unsafe vs safe foreign calls based upon estimated runtime of a computation, to ensure that long running hblas ffi calls interact safely with the GHC runtime and the rest of an application.
6. hblas is not an end user library, but is designed to easily interop with any array library that supports storable vectors.

#### 7.5.3  HROOT

 Report by: Ian-Woo Kim Status: Actively Developing

HROOT is a haskell binding to ROOT framework by fficxx, a haskell-C++ binding generator tool. ROOT (http://root.cern.ch) is an OOP framework for data analysis and statistics, which is developed at CERN. The ROOT system provides a set of OO frameworks with all the functionality needed to handle and analyze large amounts of data in a very efficient way. ROOT is a de facto standard physics analysis tool in high energy physics experiments.

This haskell binding to ROOT provides an industrial-strength statistical analysis libraries to the haskell community. The haskell code for using HROOT is very straightforward to both haskell and C++ programmers thanks to the fficxx binding generator tool. The following is a sample code and a resultant histogram for histogramming a 2D gaussian distribution:

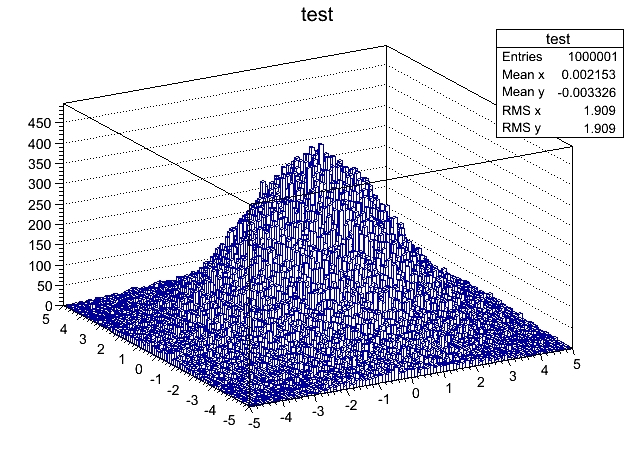

import Data.Random.Distribution.Normal
import HROOT
main :: IO ()
main = do
tcanvas <- newTCanvas "Test" "Test" 640 480
h2 <- newTH2F "test" "test"
100 (-5.0) 5.0 100 (-5.0) 5.0
let dist1 = Normal (0 :: Double)
(2 :: Double)
let go n | n < 0 = return ()
| otherwise = do
histfill dist1 dist2 h2
go (n-1)
go 1000000
draw h2 "lego"
saveAs tcanvas "random2d.pdf" ""
histfill :: Normal Double -> TH2F -> IO ()
histfill dist1 hist = do
x <- sample dist1
y <- sample dist1
fill2 hist x y
return ()

Until ghc 7.6, HROOT cannot be used in interpreter mode of ghc, due to the linker problem. Now with ghc 7.8, ghci now uses the standard system linker for dynamically loaded library. Thus, our current focus is to have full ghc interpreter support for making HROOT a really useful analysis framework. In addition, we keep importing features from ROOT to available haskell functions.

#### 7.5.4  Numerical

 Report by: Carter Tazio Schonwald Status: actively developed

The Numerical project, starting with the numerical package, has the goal of providing a general purpose numerical computing substrate for Haskell.

To start with, the numerical provides an extensible set of type classes suitable for both dense and sparse multi dimensional arrays, high level combinators for writing good locality code, and some basic matrix computation routines that work on both dense and sparse matrix formats.

The core Numerical packages, including numerical, are now in public pre-alpha as of mid May 2014, with on going active work as of November 2014.

Development of the numerical packages is public on github, and as they stabilize, alpha releases are being made available on hackage.

### 7.6  Data Types and Data Structures

#### 7.6.1  constraints

 Report by: Edward Kmett Participants: Sjoerd Visscher, Austin Seipp Status: actively developed

This package provides data types and classes for manipulating values of kind |Constraint| as exposed by GHC since 7.4.

#### 7.6.2  HList — A Library for Typed Heterogeneous Collections

 Report by: Adam Vogt Participants: Oleg Kiselyov, Ralf Lämmel, Keean Schupke

HList is a comprehensive, general purpose Haskell library for typed heterogeneous collections including extensible polymorphic records and variants. HList is analogous to the standard list library, providing a host of various construction, look-up, filtering, and iteration primitives. In contrast to the regular lists, elements of heterogeneous lists do not have to have the same type. HList lets the user formulate statically checkable constraints: for example, no two elements of a collection may have the same type (so the elements can be unambiguously indexed by their type).

An immediate application of HLists is the implementation of open, extensible records with first-class, reusable, and compile-time only labels. The dual application is extensible polymorphic variants (open unions). HList contains several implementations of open records, including records as sequences of field values, where the type of each field is annotated with its phantom label. We and others have also used HList for type-safe database access in Haskell. HList-based Records form the basis of OOHaskell. The HList library relies on common extensions of Haskell 2010. HList is being used in AspectAG (http://www.haskell.org/communities/11-2011/html/report.html#sect5.4.2), typed EDSL of attribute grammars, and in Rlang-QQ.

The October 2012 version of HList library marks the significant re-write to take advantage of the fancier types offered by GHC 7.4 and 7.6. HList now relies on promoted data types and on kind polymorphism.

Since the last update, there have been several minor releases. These include features such as support for ghc-7.8 as well as additional syntax for the pun quasiquote.

#### 7.6.3  reflection

 Report by: Edward Kmett Participants: Elliott Hird, Oliver Charles, Carter Schonwald Status: stable

This package provides a mechanism to dynamically construct a type from a term that you can reflect back down to a term based on the ideas from “Functional Pearl: Implicit Configurations” by Oleg Kiselyov and Chung-Chieh Shan. However, the API has been implemented in a much more efficient manner.

This is useful when you need to make a typeclass instance that depends on a particular value in scope, such as a modulus or a graph.

#### 7.6.4  tag-bits

 Report by: Edward Kmett Status: stable

This package provides access to the dynamic pointer tagging bits used by GHC, and can peek into infotables to determine (unsafely) whether or not a thunk has already been evaluated.

#### 7.6.5  hyperloglog

 Report by: Edward Kmett Participants: Ozgun Ataman Status: actively developed

This package provides an approximate streaming (constant space) unique object counter.

Notably it can be used to approximate a set of several billion elements with 1-2%inaccuracy in around 1.5k of memory.

#### 7.6.6  hybrid-vectors

 Report by: Edward Kmett Status: actively developed

This package provides various ways in which you can mix the different types of Vector from Roman Leschinskiy’s vector package to work with partially unboxed structures.

#### 7.6.7  lca

 Report by: Edward Kmett Participants: Daniel Peebles, Andy Sonnenburg Status: actively developed

This package improves the previous known complexity bound of online lowest common ancestor search from O(h) to O(logh) persistently, and without preprocessing by using skew-binary random-access lists to store the paths.

#### 7.6.8  concurrent-supply

 Report by: Edward Kmett Participants: Andrew Cowie, Christiaan Baaij Status: stable

This package provides a fast supply of concurrent unique identifiers suitable for use within a single process. This benefits from greatly reduced locking overhead compared to |Data.Unique| as it only contents for the common pool every thousand or so identifiers.

One often has a desire to generate a bunch of integer identifiers within a single process that are unique within that process. You could use UUIDs, but they can be expensive to generate; you don’t want to have your threads contending for a single external counter if the identifier is not going to be used outside the process.

concurrent-supply builds a rose-tree-like structure which can be split; you can make smaller unique supplies and then you allocate from your supplies locally. Internally it pulls from a unique supply one block at a time as you walk into parts of the tree that haven’t been explored. This ensures that computations are always replayable within a process, and that the result appears purely functional to an outside observer.

#### 7.6.9  heaps

 Report by: Edward Kmett Status: actively developed

This package provides asymptotically optimal purely functional Brodal-Okasaki heaps with a “Haskelly” API.

#### 7.6.10  sparse

 Report by: Edward Kmett Participants: Carter Schonwald Status: actively developed

This package provides sparse implicitly Morton-ordered matrices based on the series ‘revisiting matrix multiplication’ on the School of Haskell. It is efficient for sufficiently sparse matrices.

#### 7.6.11  compressed

 Report by: Edward Kmett Status: stable

This package provides an LZ78-compressed stream as a data type in Haskell. Compression isn’t used directly for data compression, but rather to allow for the reuse of intermediate monoidal results when folding over the data set. LZ78 is rather distinctive among LZ-variants in that it doesn’t require exhaustively enumerating the token set or searching a window. By using conservative approximations of what possible values the stream may take, it is also possible to work with this LZ78 stream as an |Applicative| or |Monad| without sacrificing too much compression on the resulting unfolding.

A similar structure is provided for decompressing run-length encoded data efficiently by peasant exponentiation.

#### 7.6.12  charset

 Report by: Edward Kmett Status: stable

This package provides fast unicode character sets based on complemented PATRICIA tries along with common charsets for variations on the posix standard and standard unicode blocks. This encoding has the benefit that a |CharSet| and its complement take the same amount of space. This package is used as a building block by parsers (→7.3.5) and trifecta (→7.3.6).

#### 7.6.13  Convenience types (Edward Kmett)

 Report by: Edward Kmett Participants: several others Status: stable

• The either package provides an |EitherT| monad transformer, that unlike |ErrorT| does not carry the unnecessary class constraint. Removing this limitation is necessary for many operations.

|EitherT| is also used extensively by Gabriel Gonzales’ |errors| package.

With either 4.0, we consolidated many of the existing combinators from Chris Done’s eithers package and Gregory Crosswhite’s either-unwrap package, both of which are now deprecated.

• The tagged package provides a simple |Tagged| newtype that carries an extra phantom type parameter, and a |Proxy| data type that has since been merged into base with GHC 7.8.

These are useful as safer ways to plumb type arguments than by passing undefined values around.

• Th void package provides a single “uninhabited” data type in a canonical location along with all of the appropriate instances.

The need for such a data type arises in shockingly many situations as it serves as an initial object for the category of Haskell data types.

### 7.7  Databases and Related Tools

#### 7.7.1  tables

 Report by: Edward Kmett Participants: Nathan van Doorn, Tim Dixon, Niklas Haas, Dag Odenhall, Petr Pilar, Austin Seipp Status: actively developed

The tables package provides a multiply-indexed in-memory data store in the spirit of ixset or data-store, but with a lens-based API.

#### 7.7.2  Persistent

 Report by: Greg Weber Participants: Michael Snoyman, Felipe Lessa Status: stable

The last HCAR announcement was for the release of Persistent 2.0, featuring a flexible primary key type.

Since then, persistent has mostly experienced bug fixes, including recent fixes and increased backend support for the new flexible primary key type.

Haskell has many different database bindings available, but most provide few usefeul static guarantees. Persistent uses knowledge of the data schema to provide a type-safe interface to the database. Persistent is designed to work across different databases, currently working on Sqlite, PostgreSQL, MongoDB, MySQL, Redis, and ZooKeeper.

Persistent provides a high-level query interface that works against all backends.

selectList [ PersonFirstName ==. "Simon",
PersonLastName ==. "Jones"] []

The result of this will be a list of Haskell records.

Persistent can also be used to write type-safe query libraries that are specific. esqueleto is a library for writing arbitrary SQL queries that is built on Persistent.

#### Future plans

Persistent is in a stable, feature complete state. Future plans are only to increase its ease the places where it can be easitly used:

• Declaring a schema separately from a record, possibly leveraging GHC’s new annotations feature or another pattern

Persistent users may also be interested in Groundhog (→7.7.3), a similar project.

Persistent is recommended to Yesod (→5.2.5) users. However, there is nothing particular to Yesod or even web development about it. You can have a type-safe, productive way to store data for any kind of Haskell project.

#### 7.7.3  Groundhog

 Report by: Boris Lykah Status: stable

Groundhog is a library for mapping user defined datatypes to the database and manipulating them in a high-level typesafe manner. It is easy to plug Groundhog into an existing project since it does not need modifying a datatype or providing detailed settings. The schema can be configured flexibly which facilitates integration with existing databases. It supports composite keys, indexes, references across several schemas. Just one line is enough to analyze the type and map it to the table. The migration mechanism can automatically check, initialize, and migrate database schema. Groundhog has backends for Sqlite, PostgreSQL, and MySQL.

Unlike Persistent (→7.7.2) it maps the datatypes instead of creating new ones. The types can be polymorphic and contain multiple constructors. It allows creating sophisticated queries which might include arithmetic expressions, functions, and operators. The database-specific operators, for example, array-related in PostgreSQL are statically guaranteed to run only for PostgreSQL connection. Its support for the natural and composite keys is implemented using generic embedded datatype mechanism.

Groundhog has got several commercial users which have positive feedback. Most of the recent changes were done to meet their needs. The new features include PostgreSQL geometric operators, Fractional, Floating, and Integral instances for lifted expressions, logging queries, references to tables not mapped to Haskell datatype, default column values, and several utility functions.

#### 7.7.4  Opaleye

 Report by: Tom Ellis Status: stable, active

Opaleye is an open-source library which provides an SQL-generating embedded domain specific language. It allows SQL queries to be written within Haskell in a typesafe and composable fashion, with clear semantics.

The project was publically released in December 2014. It is stable and actively maintained, and used in production in a number of commercial environments. Professional support is provided by Purely Agile.

Just like Haskell, Opaleye takes the principles of type safety, composability and semantics very seriously, and one aim for Opaleye is to be “the Haskell” of relational query languages.

In order to provide the best user experience and to avoid compatibility issues, Opaleye specifically targets PostgreSQL. It would be straightforward produce an adaptation of Opaleye targeting other popular SQL databases such as MySQL, SQL Server, Oracle and SQLite. Offers of collaboration on such projects would be most welcome.

Opaleye is inspired by theoretical work by David Spivak, and by practical work by the HaskellDB team. Indeed in many ways Opaleye can be seen as a spiritual successor to HaskellDB. Opaleye takes many ideas from the latter but is more flexible and has clearer semantics.

#### 7.7.5  HLINQ - LINQ for Haskell

 Report by: Mantas Markevicius Participants: Mike Dodds, Jason Reich Status: Experimental

HLINQ is a Haskell implementation of the LINQ database query framework [1] modelled on Cheney et al’s T-LINQ system for F# [2]. Database queries in HLINQ are written in a syntax close to standard Haskell do notation:

Queries can be composed using Template Haskell splicing operators, while type-safety rules provide additional correctness guarantees. Additionally, HLINQ is built on the HDBC library and uses prepared SQL statements protecting it against most SQL injection type attacks. Furthermore queries are avalanche-safe, meaning that for any query only a single SQL statement will be generated. Our system is in prototype stage, but microbenchmarks show performance competitive with HaskellDB.

The project is hosted on GitHub [3], with a technical report planned soon.

1. Microsoft LINQ: https://msdn.microsoft.com/en-us/library/bb397926.aspx

2. Cheney, James, Sam Lindley, and Philip Wadler. "A practical theory of language-integrated query." ACM SIGPLAN Notices. Vol. 48. No. 9. ACM, 2013.
3. https://github.com/juventietis/HLINQ

### 7.8  User Interfaces

#### 7.8.1  HsQML

 Report by: Robin KAY Status: active development

HsQML provides access to a modern graphical user interface toolkit by way of a binding to the cross-platform Qt Quick framework.

The library focuses on mechanisms for marshalling data between Haskell and Qt’s domain-specific QML language. The intention is that QML, which incorporates both a declarative syntax and JavaScript code, can be used to design and animate the front-end of an application while being able to easily interface with Haskell code for functionality.

Status The latest version at time of press is 0.3.3.0. Changes released since the previous edition of this report include support for rendering custom OpenGL graphics onto QML elements, facilities for managing object life-cycles with weak references and finalisers, and a number of bug fixes. It has been tested on the major desktop platforms: Linux, Windows, and MacOS.

#### 7.8.2  Gtk2Hs

 Report by: Daniel Wagner Participants: Hamish Mackenzie, Axel Simon, Duncan Coutts, Andy Stewart, and many others Status: beta, actively developed

Gtk2Hs is a set of Haskell bindings to many of the libraries included in the Gtk+/Gnome platform. Gtk+ is an extensive and mature multi-platform toolkit for creating graphical user interfaces.

GUIs written using Gtk2Hs use themes to resemble the native look on Windows. Gtk is the toolkit used by Gnome, one of the two major GUI toolkits on Linux. On Mac OS programs written using Gtk2Hs are run by Apple’s X11 server but may also be linked against a native Aqua implementation of Gtk.

Gtk2Hs features:

• Automatic memory management (unlike some other C/C++ GUI libraries, Gtk+ provides proper support for garbage-collected languages)
• Unicode support
• High quality vector graphics using Cairo
• Extensive reference documentation
• An implementation of the “Haskell School of Expression” graphics API
• Bindings to many other libraries that build on Gtk: gio, GConf, GtkSourceView 2.0, glade, gstreamer, vte, webkit

Recent efforts include increasing the coverage of the gtk3 bindings, as well as myriad miscellaneous bugfixes. Thanks to all who contributed!

#### 7.8.3  LGtk: Lens GUI Toolkit

 Report by: Péter Divianszky Participants: Csaba Hruska Status: experimental, actively developed

LGtk is a GUI Toolkit with the following goals:

• Provide a Haskell EDSL for declarative description of interactive graphical applications
• Provide an API for custom widget design
• Provide a playground for high-level declarative features like derived state-save and undo-redo operations and type-driven GUI generation

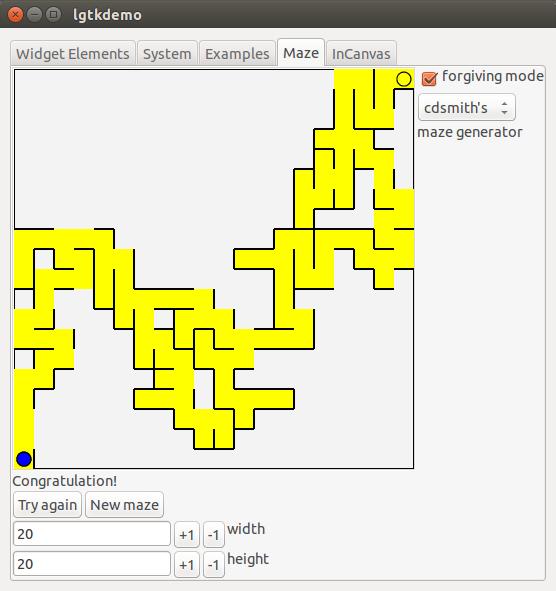

There is a demo application which presents the current features of LGtk.

Changes in lgtk-0.8 since the last official announcement:

• New features

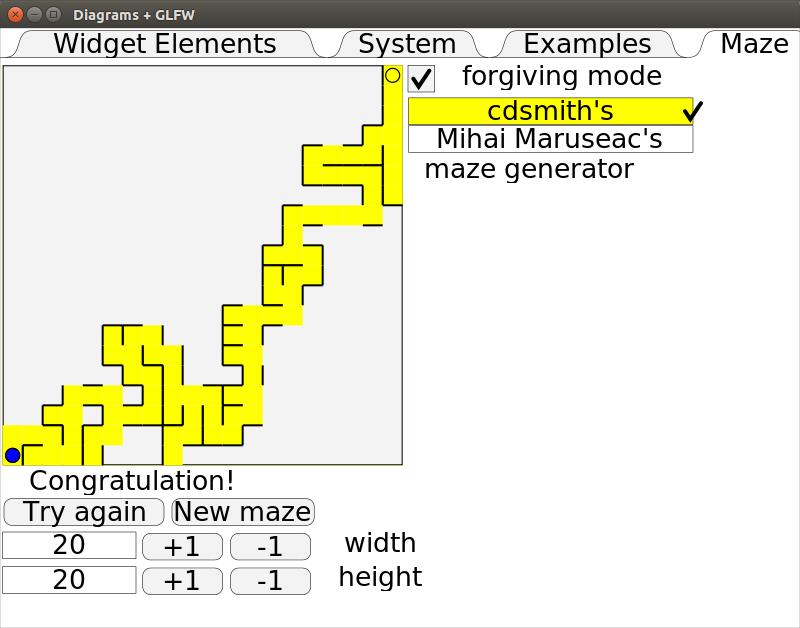

• New GLFW backend. One consequence is that the dependency on Gtk is not strict any more.
• Canvas widgets rendering diagrams composed with the diagrams library. Mouse and keyboard events are also supported.
• Widget toolkit generated with the diagrams library.
• Slider widgets
• Architectural changes
• Updated demo application
• Switch from data-lens to Edward Kmett’s lens library
• Upgrade to work with GHC 8.2
• Repository moved to GitHub
• Inner changes
• Generalized and cleaned up interface of references
• Cleaned up widget interface
• More efficient reference implementation

 Report by: Henk-Jan van Tuyl Status: active development

The wxHaskell development is progressing, wxHaskell is adapted to the new GHC release, preperations are made to support wxWidgets 3.1. New functionality has been added and development is going on for a simpler installation procedure. For the new developments, check our GitHub repository; there will be a release in the near future. New project participants are welcome.

wxHaskell is a portable and native GUI library for Haskell. The goal of the project is to provide an industrial strength GUI library for Haskell, but without the burden of developing (and maintaining) one ourselves.

wxHaskell is therefore built on top of wxWidgets: a comprehensive C++ library that is portable across all major GUI platforms; including GTK, Windows, X11, and MacOS X. Furthermore, it is a mature library (in development since 1992) that supports a wide range of widgets with the native look-and-feel.

#### 7.8.5  threepenny-gui

 Report by: Heinrich Apfelmus Status: active development

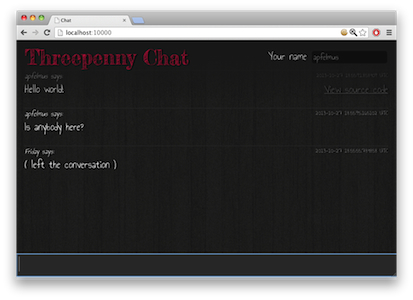

Threepenny-gui is a framework for writing graphical user interfaces (GUI) that uses the web browser as a display. Features include:

• Easy installation. Everyone has a reasonably modern web browser installed. Just install the library from Hackage and you are ready to go. The library is cross-platform.
• HTML + JavaScript. You have all capabilities of HTML at your disposal when creating user interfaces. This is a blessing, but it can also be a curse, so the library includes a few layout combinators to quickly create user interfaces without the need to deal with the mess that is CSS. A foreign function interface (FFI) allows you to execute JavaScript code in the browser.
• Functional Reactive Programming (FRP) promises to eliminate the spaghetti code that you usually get when using the traditional imperative style for programming user interactions. Threepenny has an FRP library built-in, but its use is completely optional. Employ FRP when it is convenient and fall back to the traditional style when you hit an impasse.

#### Status

The project is alive and kicking, the latest release is version 0.6.0.1. You can download the library from Hackage and use it right away to write that cheap GUI you need for your project. Here a screenshot from the example code:

For a collection of real world applications that use the library, have a look at the gallery on the homepage.

Compared to the previous report, the communication with the web browser has been overhauled completely. Internally, Threepenny implements a HTTP server that sends JavaScript code to the web browser and receives JSON data back. However, to the library user, this is presented as a JavaScript foreign function interface. The module Foreign.JavaScript gives you the essential tools needed to manipulate JavaScript objects, call functions, and even export Haskell functions to be called from JavaScript. Moreover, the FFI also handles garbage collection. The GUI parts of the library are built on top of this FFI, but you can also use it independently if you like.

#### Current development

The library is still very much in flux, significant API changes are likely in future versions. The goal is to make GUI programming as simple as possible, and that just needs some experimentation.

In future versions of Threepenny, I hope to focus on making the process of designing of a GUI simpler and faster. Unfortunately, creating a GUI with HTML and CSS usually takes a significant amount of design work. My hope is that this work can be reduced by offering a default style, incorporating an existing HTML UI kit, and packaging everything in a nice set of combinators.

#### 7.8.6  reactive-banana

 Report by: Heinrich Apfelmus Status: active development

Reactive-banana is a library for functional reactive programming (FRP).

FRP offers an elegant and concise way to express interactive programs such as graphical user interfaces, animations, computer music or robot controllers. It promises to avoid the spaghetti code that is all too common in traditional approaches to GUI programming.

The goal of the library is to provide a solid foundation.

• Programmers interested in implementing FRP will have a reference for a simple semantics with a working implementation. The library stays close to the semantics pioneered by Conal Elliott.
• The library features an efficient implementation. No more spooky time leaks, predicting space &time usage should be straightforward.

The library is meant to be used in conjunction with existing libraries that are specific to your problem domain. For instance, you can hook it into any event-based GUI framework, like wxHaskell or Gtk2Hs. Several helper packages like reactive-banana-wx provide a small amount of glue code that can make life easier.

Status. The latest version of the reactive-banana library is 0.8.1.2. The library is still in active development, but compared to the previous report, releases have mostly been aimed at ensuring compatibility with the current Haskell ecosystem.

Current development. The next version reactive-banana will finally implement garbage collection for dynamically created events and behaviors, and it will also feature some dramatic performance improvements. Judging from various user reports, it also seems that the API for dynamic event switching is too complex, in particular concerning the phantom type parameter t. Chances are that reactive-banana will drastically change its API in the future.

#### 7.8.7  fltkhs - GUI bindings to the FLTK library

 Report by: Aditya Siram Status: active

The fltks project is a set of bindings to the FLTK C++ toolkit (www.fltk.org). Coverage is fairly complete ( 85%) and it is easy to install and use. The main goal of this effort is to provide a low-cost, hassle-free way of creating self-contained, native GUI applications in pure Haskell that are portable to Windows, Linux and OSX.

FLTK was chosen because it is a mature toolkit and designed to be lightweight, portable and self-contained. In turn, fltks inherits these qualities with the additional benefit of having almost no dependencies outside of |base| and FLTK itself. This makes it very easy to get up and running with fltks.

fltks is also designed to be easy to use and learn. It tries to accomplish this by providing an API that matches the FLTK API as closely as possible so that a user can look up the pre-existing FLTK documentation for some function and in most cases be able to “guess” the corresponding Haskell function that delegates to it. Additionally fltks currently ships with 15 demos which are exact ports of demos shipped with the FLTK distribution so the user can study the code side-by-side. In most cases there is direct correspondence.

fltks is also extensible in a couple of ways. Firstly, the user can create custom GUI widgets in pure Haskell by simply overriding some key C++ functions with Haskell functions. Secondly, it is easy to add third-party widgets without touching the core bindings. Meaning if there is a useful FLTK widget that is not part of the FLTK distribution, the user can easily wrap it and publish it as a separate package without ever touching these bindings. Hopefully this fosters contribution allowing fltks to keep up with the FLTK ecosystem and even outpace it since users are now able to create new widgets in pure Haskell.

Ongoing work includes not only covering 100%of the API and porting all the demos but also adding support for FLUID (http://en.wikipedia.org/wiki/FLUID), the FLTK GUI builder. Haskellers will then be able to take any existing FLTK app which uses FLUID to build the user interface and migrate it to Haskell.

Contributions are welcome!

### 7.9  Graphics and Audio

#### 7.9.1  diagrams

 Report by: Brent Yorgey Participants: Daniel Bergey, Jan Bracker, Christopher Chalmers, Daniil Frumin, Allan Gardner, Andrew Gill, Niklas Haas, John Lato, Chris Mears, Jeff Rosenbluth, Michael Sloan, Ryan Yates, Brent Yorgey Status: active development

The diagrams framework provides an embedded domain-specific language for declarative drawing. The overall vision is for diagrams to become a viable alternative to DSLs like MetaPost or Asymptote, but with the advantages of being declarative—describing what to draw, not how to draw it—and embedded—putting the entire power of Haskell (and Hackage) at the service of diagram creation. There is still much more to be done, but diagrams is already quite fully-featured, with a comprehensive user manual, a large collection of primitive shapes and attributes, many different modes of composition, paths, cubic splines, images, text, arbitrary monoidal annotations, named subdiagrams, and more.

#### What’s new

Since the last HCAR edition, diagrams 1.3 was released in April. New features include:

• Computing intersection points between paths
• Support for generalized affine maps between different vector spaces, including projections
• New backends: diagrams-html5 generates Javascript to draw on an HTML canvas; diagrams-pgf generates PGF code suitable for inclusion in a TeXdocument
• Better interface for recompilation looping via the command line
• Generalized numerics: diagrams are now parameterized by a suitable numeric type, rather than having Double baked in
• A refactoring to use the linear package instead of vector-space

#### GSoC

This coming summer, Ajay Ramanathan will work under the guidance of Chris Chalmers to develop a library/API for working with a layered “Grammar of Graphics”, using diagrams as a foundation.

#### Contributing

There is plenty of exciting work to be done; new contributors are welcome! Diagrams has developed an encouraging, responsive, and fun developer community, and makes for a great opportunity to learn and hack on some “real-world” Haskell code. Because of its size, generality, and enthusiastic embrace of advanced type system features, diagrams can be intimidating to would-be users and contributors; however, we are actively working on new documentation and resources to help combat this. For more information on ways to contribute and how to get started, see the Contributing page on the diagrams wiki: http://haskell.org/haskellwiki/Diagrams/Contributing, or come hang out in the #diagrams IRC channel on freenode.

#### 7.9.2  Chordify

 Report by: José Pedro Magalhães Participants: W. Bas de Haas, Dion ten Heggeler, Gijs Bekenkamp, Tijmen Ruizendaal Status: actively developed

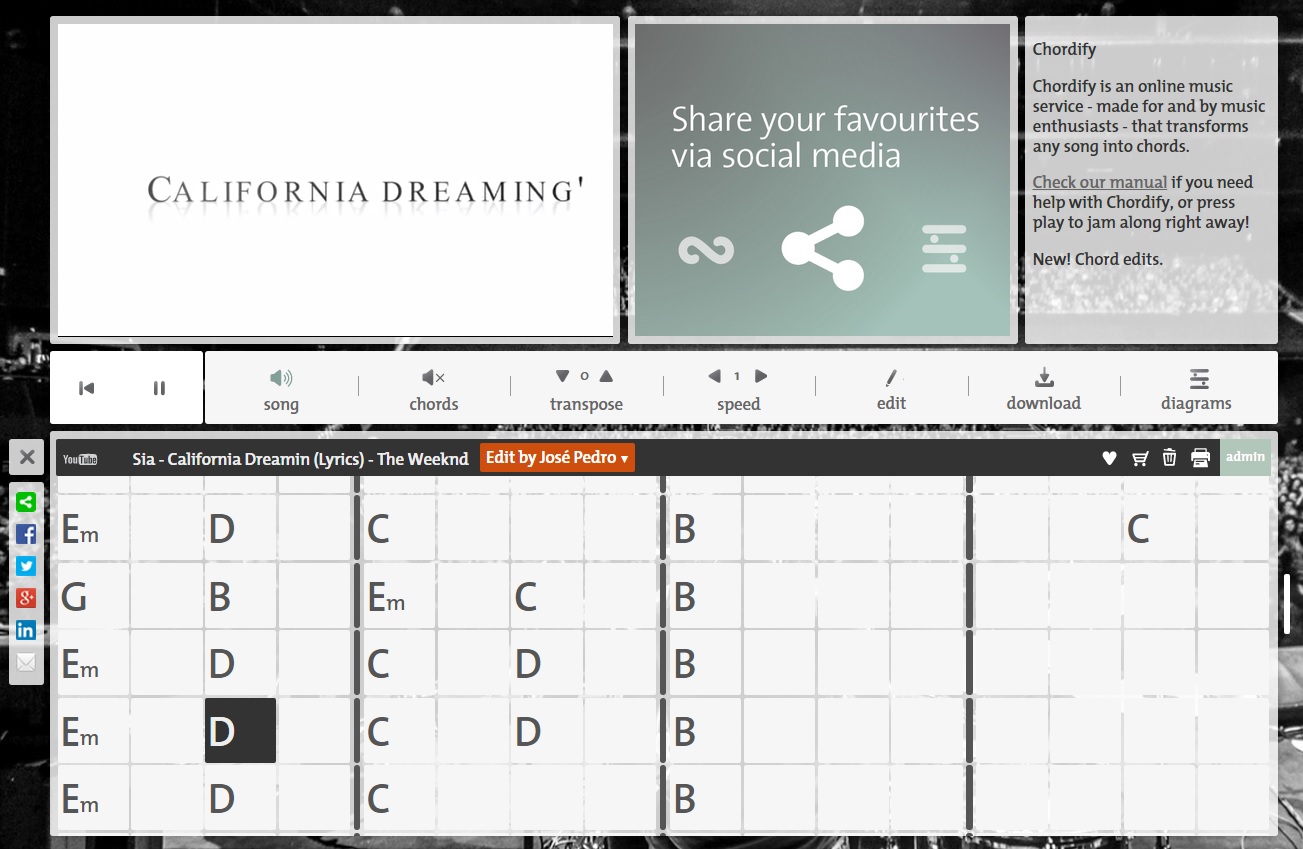

Chordify is a music player that extracts chords from musical sources like Youtube, Deezer, Soundcloud, or your own files, and shows you which chord to play when. The aim of Chordify is to make state-of-the-art music technology accessible to a broader audience. Our interface is designed to be simple: everyone who can hold a musical instrument should be able to use it.

Behind the scenes, we use the sonic annotator for extraction of audio features. These features consist of the downbeat positions and the tonal content of a piece of music. Next, the Haskell program HarmTrace takes these features and computes the chords. HarmTrace uses a model of Western tonal harmony to aid in the chord selection. At beat positions where the audio matches a particular chord well, this chord is used in final transcription. However, in case there is uncertainty about the sounding chords at a specific position in the song, the HarmTrace harmony model will select the correct chords based on the rules of tonal harmony.

We’ve recently added the ability to manually edit the chord sequences to allow our users to improve Chordify directly. We plan to use these edits to improve the algorithm itself, and to implement a system that merges edits from various users into one single corrected version. The code for HarmTrace is available on Hackage, and we have ICFP’11 and ISMIR’12 publications describing some of the technology behind Chordify.

#### 7.9.3  csound-expression

 Report by: Anton Kholomiov Status: active, experimental

The csound-expression is a library for electronic music production. It’s based on very efficient and feature rich synth Csound.

It strives to be as simple and responsive as it can be. A couple of lines of code should be enough to make something interesting. There are sensible defaults that allow the user to express the musical ideas with very short sentences.

The list of main features:

• It’s easy to use. Made for artists not for algebraists.

• Easy to use band limited oscillators.

• There is a GUI. It’s not limited to text. We can create sliders, knobs, buttons and control our synth in real-time.

• The Csound can work with frequencies. The world of microtonal music opens up.

• We can use the library as a sampler to create soundscapes in real-time. Check out the csound-sampler library on the Hackage.

• Lot’s of ready to use effects (resonators, filters, delays, distortions, flangers).

• Many modern synthesis techniques are available (granular synthesis, hyper vectorial synthesis, etc).

• There are lots of predefined instruments. Check out the csound-catalog on Hackage.

• Good support for composition with scores.

• The Csound is very efficient

• Unlimited polyphony

• Almost all Csound audio units are available. It’s more than 1000 audio units.

• Csound is very portable. The output Csound file can run on android, i-devices, raspberry pi and even in the browser.

• The Csound is open

• There is support for MIDI and OSC. Just plug and play.

• There is support for JACK. We can use it in our DAW of choice.

• We can run it within many other languages. There is support for reading control and audio signals from the outside world.

• The library is very composable

• A musical concept is just a part of the language. It’s a value or a function. We can treat the musical concepts as ordinary Haskell values.

• An audio unit is a function. It can process signals. An instrument is just a function from notes to signals.

• There is no barrier between notes and instruments. If we apply instrument to the notes we get the signal as the output. It can become a part of another instrument.

• Event streams and GUIs are based on FRP. User gets the stream of mouse clicks and can process it with fmap, filter it or merge with another signal.

• The library is made for real time usage

• We can try our ideas right in the interpreter. we can load the synth into ghci, define an audio signal right in the REPL, hit enter and listen to the sound.

• There GUIs. We can create knobs, sliders, 2D-planes, virtual midi-keyboards, buttons, etc. There a lot of predefined widgets for live performances (mixers, grids of launch buttons, racks of effects, we can create a virtual pedal boards). Check out the modules Csound.Air.Live and Csound.Air.Fx.

• It has support for MIDI and OSC protocols. We can control it with any device we like.

• There are many functions that made a playback of samples very easy. We have support for independent time and tempo stretching, creation of involved musical patterns, triggering of samples from the keyboard or midi devices, etc.

• It’s very efficient so it can run even on Atom processors in real-time.

Since the last report, There are many handy updates.

• There are functions for independent stretching of signal by pitch and tempo. It’s a vital tool for a sampler. And it works in real-time! We can create custom samplers (module Csound.Air.Wave).

• There are functions for triggering the samples with keyboard, midi-device or an event stream (module Csound.Air.Sampler).

• There are functions for creation of step sequencers. Step sequencers are very useful in dance and techno music (module Csound.Air.Envelope).

• There are easy to use opcodes for granular synthesis. The granular synthesis is a modern technique for creation of soundscapes by reading the given audio file (or a live input signal stored in the buffer) in small portions called grains (module Csound.Air.Granular).

• The type for scores was redesigned. Many event stream functions now can trigger not a single event but a score of notes. The score type is supplied with functions that simplify the creation of musical patterns. The main type fro scores comes with the library temporal-media.

• There is a novel approach to event scheduling. We can delay or limit an audio signal with an event. We can create a sequence of audio signals that are played when something happens (like button click, or some another signal crosses the threshold). The signal is supplied with information on how long it lasts. It’s called signal segment. The duration is expressed not in in fixed amount of seconds, but in event streams. When the first event happens the signal stops. We can create many handy functions for scheduling the audio signals with event streams based on this approach (module Csound.Air.Seg).

• Easy to use functions for hyper vectorial synthesis. It makes possible to control many parameters with a couple of sliders or control signals. It interpolates between many vectors reducing the dimension of control space (module Csound.Air.Hvs).

• and many more

I’ve created some music with the library. You can listen to it on the soundcloud https://soundcloud.com/anton-kho. You can even run it from sources https://github.com/anton-k/csound-bits/tree/master/pieces.

The future plans for the library is to improve documentation and guide make some tutorials and papers, to make it more available to the audience of musicians and hackers.

#### 7.9.4  Glome

 Report by: Jim Snow Status: New Version of Glome Raytracer

Glome is a ray tracer I wrote quite some time ago. The project had been dormant for about five years until a few months ago when I decided to fix some long-standing bugs and get it back into a state that compiles with recent versions of GHC. I got a little carried away, and ended up adding some major new features.

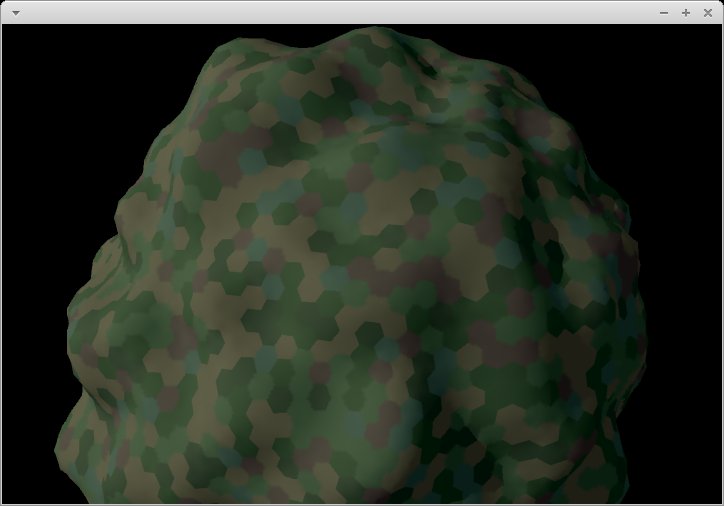

First, some background. Glome is a ray tracer, which renders 3d images by tracing rays from the camera into the scene and testing them for intersection with scene objects. Glome supports a handful of basic primitive types including planes, spheres, boxes, triangles, cones, and cylinders. It also has a number of composite primitives that modify the behavior of other primitives, such as CSG difference and intersection.

One of the more interesting composite primitives is a BIH-based accelleration structure, which sorts primitives into a hierarchy of bounding volumes. This allows for scenes with a very large number of primitives to be rendered efficiently.

Major new changes to Glome are a re-factoring of the shader code so that it is now possible to define textures in terms of user-defined types and write your own shader (though the default should be fine for most uses), a new tagging system, some changes to the front-end viewer application (which uses SDL now instead of OpenGL), and a new triangle mesh primitive type.

Tagging requires a bit of explanation. When a ray intersects with something in the scene, Glome returns a lot of information about the properties of the location where the ray hit, but until recently it didn’t give much of a clue as to what exactly the ray hit. For 3D rendering applications, you don’t usually care, but for many computational geometry tasks you do very much care.

The new tagging system makes it possible to associate any 3D primitive with a tag, such that the tag is returned along with any ray intersection that hit the wrapped primitive. Tags are returned in a list, so that it’s possible to have a heirarchy of tagged objects.

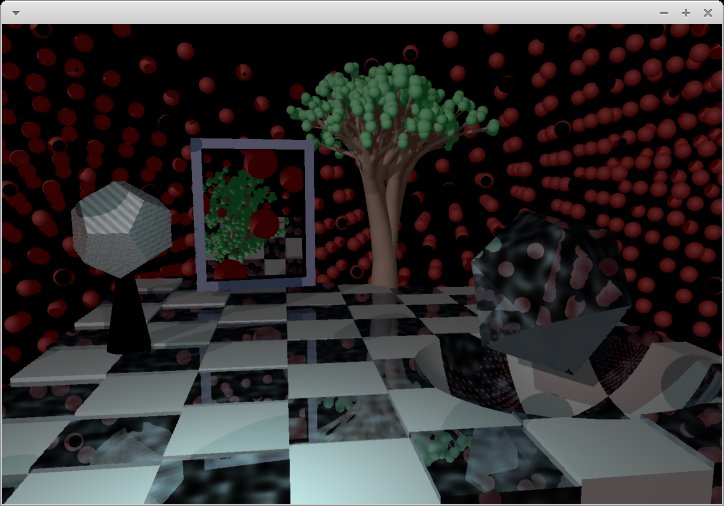

As an example of tags in action, I tagged some of the objects in Glome’s default test scene, and instrumented the viewer so that clicking on the image causes a ray to be traced into the scene from the cursor’s location, and then we print any tags returned by the ray intersection test. (Tags can be any type, but for illustrative purposes, the test scene uses strings.)

An interesting feature of the tagging system is that you don’t necessarily have to click directly on the object to get back the tag; you could also click on the image of the object reflected off of some other shiny object in the scene.

Even though Glome is still a bit too slow for practical interactive 3D applications (I’ve been able to get around 2-3 FPS at 720x480 for reasonably complex scenes on a fairly fast machine), tags should at least make it easier to write interactive applications when Moore’s law catches up.

Glome is split into three packages: GloveVec, a vector library, GlomeTrace, the ray-tracing engine, and GlomeView, a simple front-end viewer application. All are available on hackage or via github under a GPLv2 license.

### 7.10  Text and Markup Languages

#### 7.10.1  epub-tools (Command-line epub Utilities)

 Report by: Dino Morelli Status: stable, actively developed

A suite of command-line utilities for creating and manipulating epub book files. Included are: epubmeta, epubname, epubzip.

epubmeta is a command-line utility for examining and editing epub book metadata. With it you can export, import and edit the raw OPF Package XML document for a given book. Or simply dump the metadata to stdout for viewing in a friendly format.

epubname is a command-line utility for renaming epub ebook files based on the metadata. It tries to use author names and title info to construct a sensible name.

epubzip is a handy utility for zipping up the files that comprise an epub into an .epub zip file. Using the same technology as epubname, it can try to make a meaningful filename for the book.

This project is built on the latest epub-metadata library and so supports epub3 for the first time.

epub-tools is available from Hackage and the Darcs repository below.

#### 7.10.2  lens-aeson

 Report by: Edward Kmett Participants: Paul Wilson, Benno Fünfstück, Michael Sloan, Adrian Keet Status: actively developed

This package provides a suite of combinators that wrap around Bryan O’Sullivan’s aeson library using the lens library (→7.1.2) to make many data access and manipulation problems much more succinctly expressable. We provide lenses, traversals, isomorphisms and prisms that conspire to make it easy to manipulate complex JSON objects.

#### 7.10.3  lhs2TeX

 Report by: Andres Löh Status: stable, maintained

This tool by Ralf Hinze and Andres Löh is a preprocessor that transforms literate Haskell or Agda code into LaTeX documents. The output is highly customizable by means of formatting directives that are interpreted by lhs2TeX. Other directives allow the selective inclusion of program fragments, so that multiple versions of a program and/or document can be produced from a common source. The input is parsed using a liberal parser that can interpret many languages with a Haskell-like syntax.

The program is stable and can take on large documents.

The current version is 1.18 and has been released in September 2012. Development repository and bug tracker are on GitHub. There are still plans for a rewrite of lhs2TeX with the goal of cleaning up the internals and making the functionality of lhs2TeX available as a library.

#### 7.10.4  pulp

 Report by: Daniel Wagner Participants: Daniel Wagner, Michael Greenberg Status: Not yet released

Anybody who has used LaTeX knows that it is a fantastic tool for typesetting; but its error reporting leaves much to be desired. Even simple documents that use a handful of packages can produce hundreds of lines of uninteresting output on a successful run. Picking out the parts that require action is a serious chore, and locating the right part of the document source to change can be tiresome when there are many files.

Pulp is a parser for LaTeX log files with a small but expressive configuration language for identifying which messages are of interest. A typical run of pulp after successfully building a document produces no output; this makes it very easy to spot when something has gone wrong. Next time you want to produce a great paper, process your log with pulp!

Features

• LaTeX log parser with special-case support for many popular packages and classes
• Expressive configuration language
• Filter out document-specific unimportance
• Increase verbosity as the document nears completion
• Uniform error reporting format with file and line information
• Instructions for use with latexmk
• Rudimentary Windows support

#### 7.10.5  hyphenation

 Report by: Edward Kmett Status: stable

This package provides configurable Knuth-Liang hyphenation using the UTF-8 encoded hyphenation patterns for 69 languages, based on the patterns provided by the hyph-utf8 project for LaTeX. It can be mixed with a pretty-printer to provide proper break-points within words.

### 7.11  Natural Language Processing

#### 7.11.1  NLP

 Report by: Eric Kow

The Haskell Natural Language Processing community aims to make Haskell a more useful and more popular language for NLP. The community provides a mailing list, Wiki and hosting for source code repositories via the Haskell community server.

The Haskell NLP community was founded in March 2009. The list is still growing slowly as people grow increasingly interested in both natural language processing, and in Haskell.

At the present, the mailing list is mainly used to make announcements to the Haskell NLP community. We hope that we will continue to expand the list and expand our ways of making it useful to people potentially using Haskell in the NLP world.

New packages

• Earley-0.8.0 (Olle Fredriksson)

This (Text.Earley) is a library consisting of two parts:

1. Text.Earley.Grammar: An embedded context-free grammar (CFG) domain-specific language (DSL) with semantic action specification in applicative style.

An example of a typical expression grammar working on an input tokenized into strings is the following:

expr :: Grammar r String (Prod r String String Expr)
expr = mdo
x1 <- rule $Add <$> x1 <* namedSymbol "+" <*> x2
<|> x2
<?> "sum"
x2 <- rule $Mul <$> x2 <* namedSymbol "*" <*> x3
<|> x3
<?> "product"
x3 <- rule $Var <$> (satisfy ident <?> "identifier")
<|> namedSymbol "(" *> x1 <* namedSymbol ")"
return x1
where
ident (x:_) = isAlpha x
ident _     = False

• Text.Earley.Parser: An implementation of (a modification of) the Earley parsing algorithm.

To invoke the parser on the above grammar, run e.g. (here using words as a stupid tokeniser):

fullParses $parser expr$ words "a + b * ( c + d )"
= ( [Add (Var "a") (Mul (Var "b")
, Report {...}
)

Note that we get a list of all the possible parses (though in this case there is only one).

#### 7.11.2  GenI

 Report by: Eric Kow

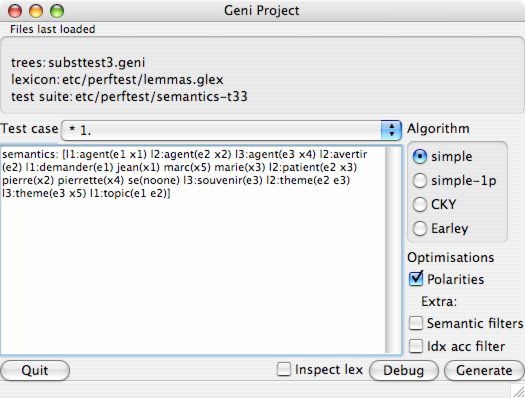

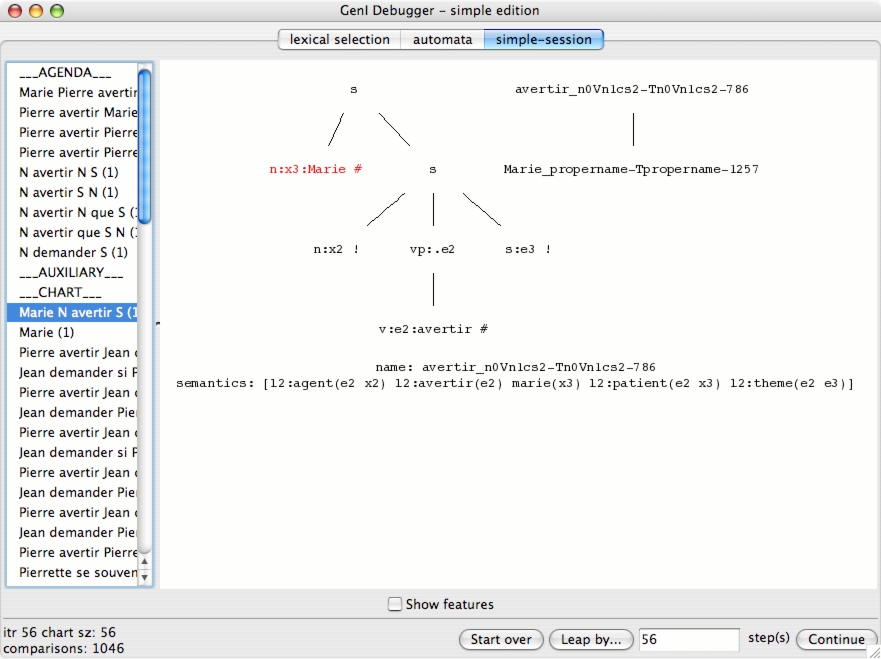

GenI is a surface realizer for Tree Adjoining Grammars. Surface realization can be seen a subtask of natural language generation (producing natural language utterances, e.g., English texts, out of abstract inputs). GenI in particular takes a Feature Based Lexicalized Tree Adjoining Grammar and an input semantics (a conjunction of first order terms), and produces the set of sentences associated with the input semantics by the grammar. It features a surface realization library, several optimizations, batch generation mode, and a graphical debugger written in wxHaskell. It was developed within the TALARIS project and is free software licensed under the GNU GPL, with dual-licensing available for commercial purposes.

GenI is now mirrored on GitHub, with its issue tracker and wiki and homepage also hosted there. The most recent release, GenI 0.24 (2013-09-18), allows for custom semantic inputs, making it simpler to use GenI in a wider variety for applications. This has recently been joined by a companion geni-util package which offers a rudimentary geniserver client and a reporting tool for grammar debugging.

### 7.12  Bioinformatics

 Report by: Christian Höner zu Siederdissen Status: usable, active development

ADPfusion provides a low-level domain-specific language (DSL) for the formulation of dynamic programs with emphasis on computational biology and linguistics. Following ideas established in Algebraic dynamic programming (ADP) a problem is separated into a grammar defining the search space and one or more algebras that score and select elements of the search space. The DSL has been designed with performance and a high level of abstraction in mind.

ADPfusion grammars are abstract over the type of terminal and syntactic symbols. Thus it is possible to use the same notation for problems over different input types. We support strings, and sets in linear and context-free languages. We will support more input types in the future. ADPfusion is extendable by the user without having to modify the core library.

As an example, consider a grammar that recognizes palindromes. Given the non-terminal p, as well as parsers for single characters c and the empty input e, the production rule for palindromes can be formulated as p ->c p c || e.

The corresponding ADPfusion code is similar:

p (f <<< c % p % c ||| g <<< e ... h)

We need a number of combinators as “glue” and additional evaluation functions f, g, and h. With f c1 p c2 = p && (c1=c2) scoring a candidate, g e = True, and h xs = or xs determining if the current substring is palindromic.

This effectively turns the grammar into a memo-function that then yields the optimal solution via a call to axiom p. Backtracking for co- and sub-optimal solutions is provided as well. The backtracking machinary is derived automatically and requires the user to only provide a set of pretty-printing evaluation functions.

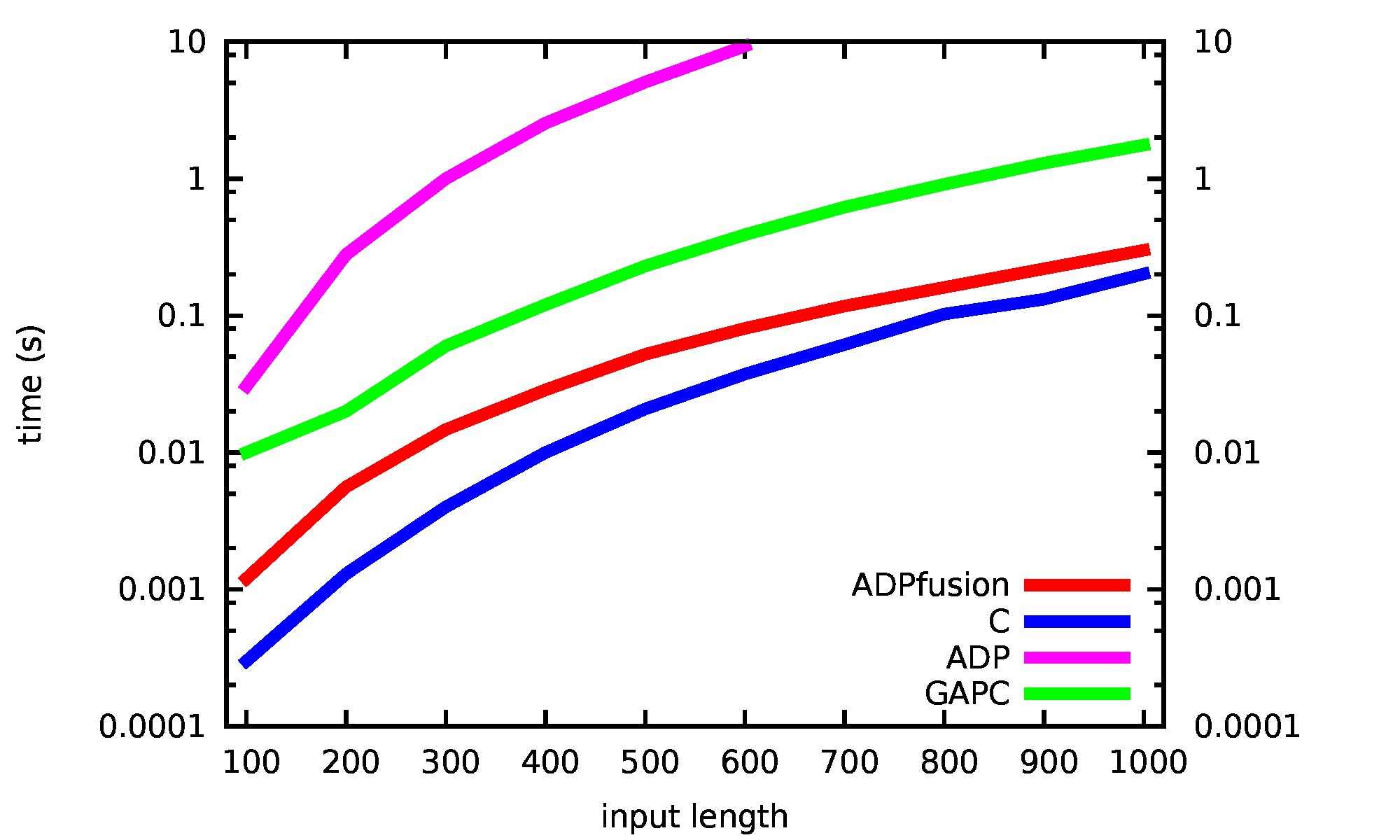

As of now, code written in ADPfusion achieves performance close to hand-optimized C, and outperforms similar approaches (Haskell-based ADP, GAPC producing C++) thanks to stream fusion. The figure shows running times for the Nussinov algorithm.

The entry on generalized Algebraic Dynamic Programming provides information on the associated high-level environment for the development of dynamic programs.

#### 7.12.2  Ab-initio electronic structure in Haskell

 Report by: Alessio Valentini Participants: Felipe Zapata, Angel Alvarez Status: Active

We are three friends from Alcala de Henares (Spain), two PhD students in computational chemistry from ResMol group and one sysadmin working at Alcala University computer center. We all share the same passion in programming and after some adventures in Fortran, Bash, Python and Erlang we are now fully committed to Haskell. As PhD students working in this area, every day we face codes that are both difficult to read and improve, with no guidelines and poor documentation.

The set of problems inherent in computational chemistry are mainly due to the theoretical models complexity and the need of reducing as much as possible the computational time, leading to a demand of extremely solid and efficient software. What is happening in the actual context is the result of a poor interface between the two adjoining worlds of chemist and computer science and the necessity of publishing papers and scientific material to raise funds. This usually leads to software hastily developed by a few chemists with only a side-interest in programming and therefore a limited skill set.

The very few software that can be deemed remarkable are usually the result of massive funding, and even those packages are now facing huge problems in terms of parallelization, concurrency and stability of the code. Most of the efforts are spent trying to fix these issues instead of being addressed at developing better code (improve modularity and intelligibility) or new features and new algorithms.

We witness the proliferation of projects that serve no other purpose than to provide a bridge between different software, while the main core of molecular modeling codes, in most cases written in Fortran 77, remains untouched since the eighties.

Our first purpose in this project is to become better at Haskell programming and having fun managing a package that is every day becoming bigger. But we kind of dream of a molecular modeling software that can fully express the great upsides of functional programming. Fewer lines of code, better readability, great parallelization, embedded domain specific languages (EDSL) ... and maybe more efficiency, too !

Ab-initio molecular modeling is a branch of computational chemistry that, for a set of given atoms, solves the Schrödinger equation (the analogous of Newton’s equation in quantum mechanics), with no inclusion of parameters derived from experimental data. In such systems it is quite easy to calculate forces between nuclei but things get tricky when we calculate the potential energy contribution of forces related to electrons. In this case we can adopt a first approximation, the so called Hartree-Fock, that considers the electron-electron repulsion as an average between each electron and the mean field of all the others. This theory is right now the cornerstone of more sophisticated methods, such Multiconfigurational Methods, Mø ller-Plesset Perturbation Theory or Coupled Cluster, and the mathematical models behind its implementation are vastly used throughout the world of computational chemistry.

This package can calculate the Hartree Fock energy of a given molecule geometry and a basis set solving the Roothaan Hall equations through a self consistent field procedure. It uses the Harris Functional as an initial density guess and the DIIS method to greatly improve the convergence.

The entire code is written using the Repa library and focusing our efforts on efficiency, parallelism (speedups vs cores: 2,3 on 4 and 3.5 on 8) and code readability. Using Haskell’s higher order abstraction we are trying to develop an EDSL appropriate for quantum mechanics problems, creating code operators able to fairly mimic the physical ones.

A Hartree Fock p orbital in PSB3:

We are currently developing this code in our spare time, working on analytical gradients, on the Prisma algorithm and on a solid eigenvalue problem solver. The aims of this projects are a full Haskell implementation of Multiconfigurational Methods and possibly an integration with our molecular dynamics project.

#### 7.12.3  Semi-Classical Molecular Dynamics in Haskell

 Report by: Alessio Valentini Participants: Felipe Zapata, Angel Alvarez Status: Active

As a first approximation, we can split the world of Molecular Dynamics into three branches: Force Fields, Classical (Semi-Classical) and Quantum Molecular Dynamics. The first approach completely ignores the description of the electrons, and the system is described by a "Balls and Springs" model leading to very cheap calculations that can be performed in big systems.

From a chemical point of view, anyway, this approach often suffers severe drawbacks, since every time an accurate description of electrons is needed (i.e. when studying the formation or breaking of bonds, reations involving excited states, or heavily polarized systems) we cannot rely on pure Classical Mechanics.

On the other side, even if the Quantum Dynamics approach is capable of describing the real quantum behavior of every single electron and nucleus, it comes with a huge increase in computational cost. It is basically unaffordable for systems with more than 5-6 atoms. That’s why we need to take in consideration the Classical and Semi Classical Dynamics, where the system’s forces are calculated using a Quantum method, while the geometry is updated with Classical Mechanics and some ad-hoc formulae to take into account quantum effects.

As PhD students in computational chemistry we often found ourselves in this situation: we have a chemical problem that might appear simple at first, but then it is usually quite difficult to find all the features necessary to tackle it in the same package. It is often the case where software "X" is lacking feature "Z" while software "Y" is missing feature "W".

The possible solutions to this impasse are:

1. to encode the missing features in the software of choice, a task that can reveal itself as very difficult and time consuming, since most of the time we are dealing with monolithic software written in Fortran, usually quite old and poorly maintained.

2. to write an external software (i.e. parser/launcher) capable of interact concurrently with several software, which is currently the approach employed in most cases. So much that the vast majority of computational chemists keeps a personal folder that contains just collections of parsers and scripts.

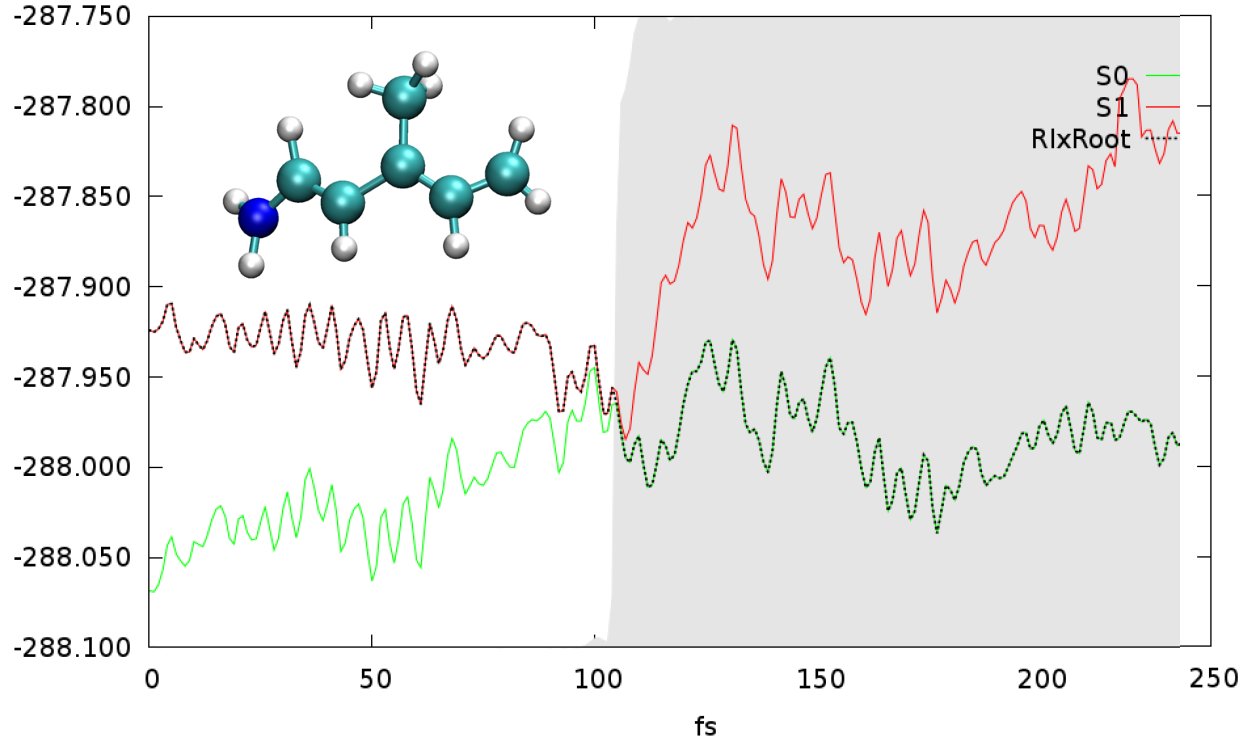

Energies vs time for a two electronic states system:

Our project takes advantage of the exceptional modularity that Haskell offers, and represents our effort to unify in a comprehensive tool all those routines that are needed in our research group to perform Classical and Semi Classical Molecular Dynamics. Our current goal is to keep a robust code and to minimize the need to use external software, limiting their application to the computation of the gradient.

Given some initial conditions and an external program (currently Molcas and Gaussian are supported) capable of calculating the energy gradient, our code is able to parse its log file and perform the whole "Semi-Classical part" of the Molecular Dynamics.

The code employs the Velocity Verlet algorithm to propagate the geometries, the NoséHoover thermostate for a constant temperature bath and the Tully Hammes Schiffer hopping algorithm (along with correction of Persico-Granucci) to take in consideration hops between different electronic states. It also features the possibility to add external forces to the molecule, to simulate constrained conditions that can be found, for example, in a protein binding pocket.

This is still a small project, but we are using it constantly in our research group as a flexible tool for molecular dynamics, waiting for our other project to calculate the ab-initio gradient for us.

 Report by: Ketil Malde Participants: Christian Höner zu Siederdissen, Michal J. Gajda, Nick Ignolia, Felipe Almeida Lessa, Dan Fornika, Maik Riechert, Ashish Agarwal, Grant Rotskoff, Florian Eggenhofer, Sarah Berkemer, Niklas Hambüchen

Bioinformatics in Haskell is a steadily growing field, and the Bio section on Hackage now contains 69 libraries and applications. The biohaskell web site coordinates this effort, and provides documentation and related information. Anybody interested in the combination of Haskell and bioinformatics is encouraged to sign up to the mailing list (currently by emailing <ketil at malde.org>Ketil), and to register and document their contributions on the http://biohaskell.org wiki.

In the summer of 2014, Sarah Berkemer was financed by Google’s Summer of Code program to work on optimizing transalign. After a summer’s work, Sarah was able to improve both space and time usage. Other new additions are parsers by Floran Eggenhofer for the NCBI Genbank format and for Clustal mulitiple sequence alignments. There is also a new library for working with EEG devices, written by Niklas Hambüchen and Patrick Chilton.

#### 7.12.5  arte-ephys: Real-time electrophysiology

 Report by: Greg Hale Participants: Alex Chen Status: work in progress

Arte-ephys is a soft real-time neural recording system for experimental systems neuroscientists.

Our lab uses electrode arrays for brain recording in freely moving animals, to determine how these neurons build, remember, and use spatial maps.

We previously recorded and analyzed our data in two separate stages. We are now building a recording system focused on streaming instead of offline analysis, for real-time feedback experiments. For example, we found that activity in the brain of resting rats often wanders back to representations of specific parts of a recently-learned maze, and we would now like to automatically detect these events and reward the rat immediately for expressing them, to see if this influences either the speed of learning of a specific part of the maze or the nature of later spatial information coding.

We now have a proof-of-concept that streams recorded data from disk, performs the necessary preprocessing, and accurately decodes neural signals in realtime, while drawing the results with gloss. Our next goal is to integrate this into a sytem that streams raw neural data during the experiment.

### 7.13  Embedding DSLs for Low-Level Processing

#### 7.13.1  CλaSH

 Report by: Christiaan Baaij Participants: Jan Kuper, Arjan Boeijink, Rinse Wester Status: actively developed

The first line of the package description on hackage is:

CλaSH (pronounced ’clash’) is a functional hardware description language that borrows its syntax and semantics from the functional programming language Haskell.

In essence, however, it is a combination of:

Of course, the compiler cannot transform arbitrary Haskell code to hardware, but only the structural subset of Haskell. This subset is vaguely described as the semantic subset of Haskell from which a finite structure can be inferred, and hence excludes unbounded recursion. The CλaSH compiler is thus a proper compiler (based on static analysis), and not an embedded Domain Specific Language (DSL) such as Kansas Lava (→7.13.3).

CλaSH has been in active development since 2010, and its last entry in HCAR was in 2011 http://www.haskell.org/communities/05-2011/html/report.html#sect7.5.1. Since then we have significantly improved stability, enlarged the subset of transformable Haskell, improved performance of the compiler, and added SystemVerilog generation. And, perhaps most importantly, vastly improved documentation.

CλaSH is available on hackage, for GHC version 7.10 and higher:

$cabal update$ cabal install clash-ghc

Development plans for CλaSH are:

• Behavioural synthesis of unbounded recursion (by Ingmar te Raa).
• Use a dependently typed internal core language, so that we can use both Haskell/GHC and Idris http://http://www.idris-lang.org/ as front-end language for circuit design (by Christiaan Baaij).

#### 7.13.2  Feldspar

 Report by: Emil Axelsson Status: active development

Feldspar is a domain-specific language for digital signal processing (DSP). The language is embedded in Haskell and is currently being developed by projects at Chalmers University of Technology (→9.6), SICS Swedish ICT AB and Ericsson AB.

The motivating application of Feldspar is telecoms processing, but the language is intended to be useful for DSP in general. The aim is to allow DSP functions to be written in pure functional style in order to raise the abstraction level of the code and to enable more high-level optimizations. The current version consists of an extensive library of numeric and array processing operations as well as a code generator producing C code for running on embedded targets.

At present, Feldspar can express the pure data-intensive numeric algorithms which are at the core of any DSP application. There is also support for the expression and compilation of parallel algorithms.

Ongoing work, presented at IFL 2014, extends Feldspar with basic input/output capabilities and adds a library to express streaming systems using a synchronous programming model. Future work involves extending and improving the system programming part of the language, and adding support for compilation to heterogeneous multi-core targets.

#### 7.13.3  Kansas Lava

 Report by: Andrew Gill Participants: Bowe Neuenschwander Status: ongoing

Kansas Lava is a Domain Specific Language (DSL) for expressing hardware descriptions of computations, and is hosted inside the language Haskell. Kansas Lava programs are descriptions of specific hardware entities, the connections between them, and other computational abstractions that can compile down to these entities. Large circuits have been successfully expressed using Kansas Lava, and Haskell’s powerful abstraction mechanisms, as well as generic generative techniques, can be applied to good effect to provide descriptions of highly efficient circuits.

• The Fabric monad is now a Monad transformer. The Fabric monad historically provided access to named input/output ports, and now also provides named variables, implemented by ports that loop back on themselves. This additional primitive capability allows for a typed state machine monad. This design gives an elegant stratospheric pattern: purely functional circuits using streams; a monad for layout over space; and a monad for state generation, that acts over time.

• On top of the Fabric monad, we are implementing an atomic transaction layer, which provides a BSV-like interface, but in Haskell. An initial implementation has been completed, and this is being reworked to include BSV’s Ephemeral History Registers.

### 7.14  Games

#### 7.14.1  The Amoeba-World game project

 Report by: Alexander Granin Status: work in progress

In functional programming, there is a serious problem: there are no materials for the development of large applications. As we know, this field is well studied for imperative and object-oriented languages. There are books on design, architecture, design patterns and modeling practices. But we have no idea how this big knowledge can be adapted to functional languages.

I’m working on a game called “The Amoeba World”. The goal of this project is to explore approaches to the development of large applications on Haskell. The results of my research are some articles which will be used to compose a book about functional design and architecture. Currently two articles are written out of the planned four (in Russian, but the articles will be translated to English soon). The first highlights the issue of whether the mainstream knowledge of architecture is applicable to the functional paradigm and what tools can be used for designing of architecture. It shows that the UML is ill-suited for the functional paradigm and the architecture is constructed using mind maps and concept cards. The second article talks about a low-level design of the application using the language Haskell. It has a theoretical part named what makes a good design, but there is also practical part describing of the some anti-patterns in Haskell. The third article is under development now. In it, the application design based on properties and scenarios is researched. The fourth article will be discussing the use of FRP.

Code of the game “The Amoeba World” should be written well to be a good example of the design concepts. These concepts are: using DSL, parsing, layering, using lenses, Inversion of Control, testing, FRP, SDL, usefulness of monads. The overall architecture of the game looks as follows:

At the moment, the game logic has been rewritten twice. The draft of game logic is ready. A special file format ’ARF’ (Amoeba Raw File) for the game objects is done. Parsec is used for parsing, and a custom safe translator is written, which works on rules. Now I’m are working on a Application Layer. Settings loading is done. A primitive renderer for the game world is created. A draft game cycle and IO event handler from SDL subsystem is done by using Netwire FRP library. The next objectives are to add an interaction within the game world and then move to the execution of scenarios on game objects.

#### 7.14.2  EtaMOO

 Report by: Rob Leslie Status: experimental, active development

EtaMOO is a new, experimental MOO server implementation written in Haskell. MOOs are network accessible, multi-user, programmable, interactive systems well suited to the construction of text-based adventure games, conferencing systems, and other collaborative software. The design of EtaMOO is modeled closely after LambdaMOO, perhaps the most widely used implementation of MOO to date.

Unlike LambdaMOO which is a single-threaded server, EtaMOO seeks to offer a fully multi-threaded environment, including concurrent execution of MOO tasks. To retain backward compatibility with the general MOO code expectation of single-threaded semantics, EtaMOO makes extensive use of software transactional memory (STM) to resolve possible conflicts among simultaneously running MOO tasks.

EtaMOO fully implements the MOO programming language as specified for the latest version of the LambdaMOO server, with the aim of offering drop-in compatibility. Several enhancements are also planned to be introduced over time, such as support for 64-bit MOO integers, Unicode MOO strings, and others.

While still under development, the current implementation supports loading a LambdaMOO-format database from a file, receiving client (telnet) connections from the network, and executing MOO code as a result of processing the commands received from each connection. Soon to be implemented will be the ability to save the changes made to the MOO object database back to a file, at which point the server should be largely usable.

Latest development of EtaMOO can be seen on GitHub, with periodic releases also being made available through Hackage.

#### 7.14.3  scroll

 Report by: Joey Hess Status: stable, complete

Scroll is a roguelike game, developed in one week as an entry in the 2015 Seven Day Roguelike Challenge.

In scroll, you’re a bookworm that’s stuck on a scroll. You have to dodge between words and use spells to make your way down the page as the scroll is read. Go too slow and you’ll get wound up in the scroll and crushed.

This was my first experience with using Haskell for game development, and I found it quite an interesting experience, and a great crutch in such an intense coding sprint. Strong typing and purely functional code saved me from many late night mistakes, until I eventually became so exhausted that |String -> String| seemed like a good idea. Even infinite lists found a use; one of scroll’s levels features a reversed infinite stream of consciousness based on Joyce’s Ulysses&hellp;

Scroll was written in continuation passing style, and this turned out to be especially useful in developing its magic system, with spells that did things ranging from creating other spells, to using a quick continuation based threading system to handle background tasks, to letting the player enter the altered reality of a dream, from which they could wake up later.

I had a great time creating a game in such a short time with Haskell, and documenting my progress in 7 blog posts, and it’s been well received by players.

#### 7.14.4  Nomyx

 Report by: Corentin Dupont Status: pre-release version

Nomyx is a unique game where you can change the rules of the game itself, while playing it! In fact, changing the rules is the goal of the game. Changing a rule is considered as a move. Of course even that can be changed! The players can submit new rules or modify existing ones, thus completely changing the behaviour of the game through time. The rules are managed and interpreted by the computer. They must be written in the Nomyx language, based on Haskell. This is the first complete implementation of a Nomic game on a computer.

At the beginning, the initial rules are describing:

• How to add new rules and change existing ones. For example a unanimity vote is necessary to have a new rule accepted.
• How to win the game. For example you win the game if you have 5 rules accepted.

But of course even that can be changed!

A Beta version has been released. A match is currently on-going, join us! A lot of learning material is available, including a video, a tutorial, a FAQ, a forum and API documentation.

If you like Nomyx, you can help! There is a development mailing list (check the website). The plans now are to fix the remaining bugs and release a V1.0 in some month.

### 7.15  Others

#### 7.15.1  General framework for multi-agent systems

 Report by: Nickolay Kudasov Status: experimental

The goal is to create a general framework for developing and testing of multi-agent systems. That includes general representation for multi-agent systems as well as library implementations for well-known agent models, distributed algorithms and communication and coordination patterns.

Notions of agent and environment are separated with the help of free monads. Agent-environment interface is defined by an underlying functor.

The basic representation of agent and environment has been chosen and tested for an agent-based distributed graph coloring problem.

The concrete implementation is being revised frequiently and thus is not very stable.

Implementations for some general distributed algorithms (ABT, DBA, etc.) will be available shortly.

#### 7.15.2  ersatz

 Report by: Edward Kmett Participants: Johan Kiviniemi, Iain Lane Status: stable

Ersatz is a library for generating QSAT (CNF/QBF) problems using a monad. It takes care of generating the normal form, encoding your problem, marshaling the data to an external solver, and parsing and interpreting the result into Haskell types.

What differentiates Ersatz from other SAT bindings is the use of observable sharing in the API.

This enables you to use the a much richer subset of Haskell than the purely monadic meta-language, and it becomes much easier to see that the resulting encoding is correct.

Support is offered for decoding various Haskell datatypes from the solution provided by the SAT solver.

A couple of examples are included with the distribution. Neither are as fast as a dedicated solver for their respective domains, but they showcase how you can solve real world problems involving 10s or 100s of thousands of variables and constraints.

#### 7.15.3  leapseconds-announced

 Report by: Björn Buckwalter Status: stable, maintained

The leapseconds-announced library provides an easy to use static LeapSecondTable with the leap seconds announced at library release time. It is intended as a quick-and-dirty leap second solution for one-off analyses concerned only with the past and present (i.e. up until the next as of yet unannounced leap second), or for applications which can afford to be recompiled against an updated library as often as every six months.

Version 2015 of leapseconds-announced contains all leap seconds up to 2015-07-01. A new version will be uploaded if/when the IERS announces a new leap second.

#### 7.15.4  arbtt

 Report by: Joachim Breitner Status: working

The program arbtt, the automatic rule-based time tracker, allows you to investigate how you spend your time, without having to manually specify what you are doing. arbtt records what windows are open and active, and provides you with a powerful rule-based language to afterwards categorize your work. And it comes with documentation!

#### 7.15.5  Hoodle

 Report by: Ian-Woo Kim Status: Actively Developing

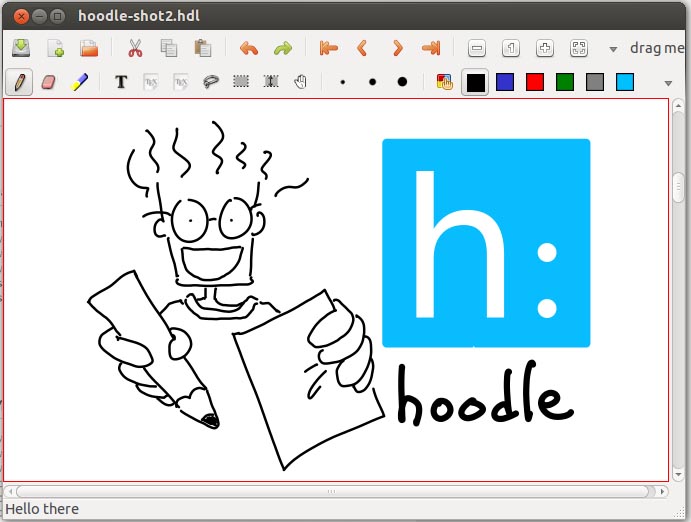

Hoodle is a pen-notetaking programing written in haskell using Gtk2hs. The name Hoodle is from Haskell + doodle.

This project first started as making a haskell clone of Xournal, a notetaking program developed in C. But now Hoodle has more unique features, as well as basic pen notetaking function. Pen input is directly fed into from X11 events, which has sub-pixel level accuracy for the case of wacom tablets. Therefore, the resultant pen strokes are much smoother than other similar open-source programs such as Jarnal and Gournal.

Hoodle can be used for annotation on PDF files, and also supports importing images of PNG, JPG and SVG types, and exporting Hoodle documents to PDF. One of the most interesting features is “linking”: each Hoodle document can be linked with each other by simple drag-and-drop operations. Then, the user can navigate linked Hoodle documents as we do in web browser. Another interesting feature is that one can edit a document in split views, so that a long Hoodle document can be easily edited. Hoodle can embed LaTeXtexts and the embedded text can be edited via network.

GUI programming is in general tightly tied into a GUI framework. Since most frameworks rely on callbacks for event processing, program logic is likely to be scattered in many callback functions. We cure this situation by using coroutines. In haskell, coroutine can be implemented in a straightforward way without relying on specific language feature. This abstraction enable us to reason through the program logic itself, not through an inverted logic in a GUI framework.

Hoodle is being very actively developed as an open-source project hosted on Github. The released versions are located on Hackage, and it can be installed by simple cabal install. On Linux, OS X, and Windows systems with Gtk2hs and Poppler, Hoodle can be installed without problems. Recently, it is packaged for NixOS. Making a Hoodle binary package for other linux distributions, OS X and window is planned.

The development focus as of now is to have more flexible link features (link to arbitrary position of a document) and an internal database for document management. Hoodle manages documents with a unique UUID, but it does not have a good internal database yet. This feature can also be extended to saving Hoodle documents in cloud storage in a consistent way. Refining rendering with appropriate GPU acceleration is also planned. In the long run, we plan to support mobile platforms.

#### 7.15.6  Reffit

 Report by: Greg Hale Status: work in progress

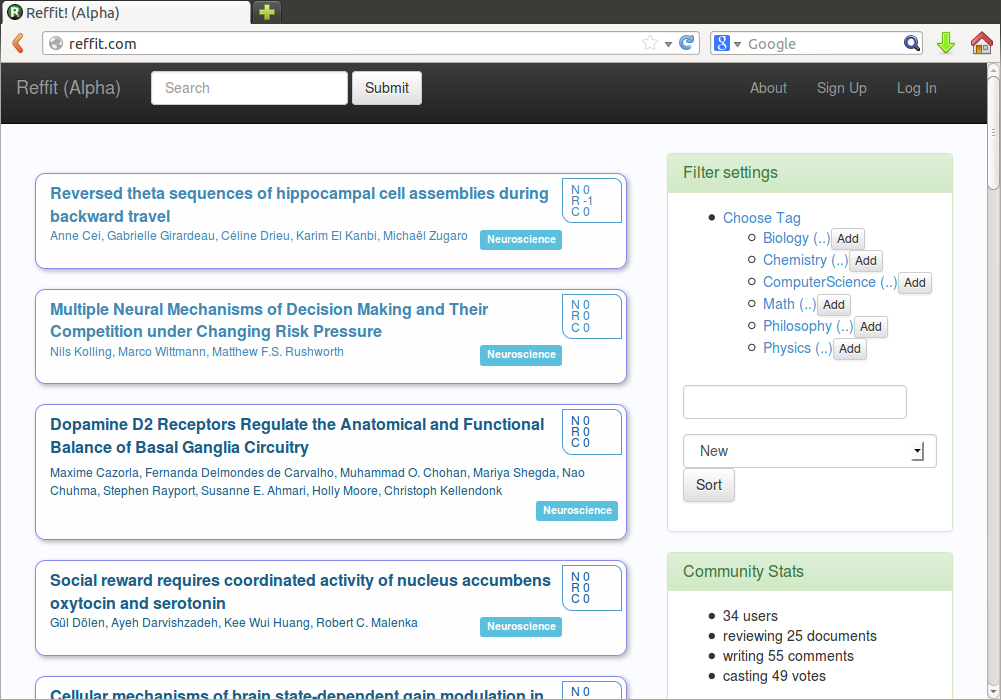

Reffit is a Snap website for collecting and organizing short comments on peer reviewed papers, blog posts, and videotaped talks. We hope to attract a community and foster a culture of open discussion of papers, with a lighthearted attitude, informality, and gamification.

#### 7.15.7  Laborantin

 Report by: Lucas DiCioccio Status: Working, development for new features

Conducting scientific experiments is hard. Laborantin is a DSL to run and analyze scientific experiments. Laborantin is well-suited for experiments that you can run offline such as benchmarks with many parameters.

Laborantin encourages users to express experiments parameters, experiment results, as well as execution, startup, and teardown procedures in a methodical manner. For instance, the following snippet defines a network ‘ping’ experiment with a destination and packet-size parameters.

Unknown begin: \begin{scriptsize}

Laborantin also lets users express dependencies between experiments. Laborantin is designed to allow multiple backend (where to run and store experiments) and multiple frontends (how a user interacts with Laborantin). The current backend stores experiment results on the filesystem and provides a command line frontend.

Contributions are welcome. In the future, we plan to enrich Laborantin with helper modules for common tasks such as starting and collecting outputs of remote processes, reformatting results, and generating plots (e.g., with Diagrams). Laborantin would also benefit from new backends (e.g., to store results in an SQL database or HDFS) and new frontends (e.g., an integration in IHaskell).

#### 7.15.8  tempuhs

 Report by: Alexander Berntsen Status: pre-release

tempuhs is an ambitious effort by plaimi (→8.7) to chronicle time. This means recording events, and arranging them with regards to time.

The grand vision is a system capable of storing a timespan that includes The Big Bang on the scale of Planck-time, the history of the universe on the scale of milliards-of-years, your Mother’s birthday on the scale of days in the Gregorian new style calendar, and your meeting scheduler on the scale of minutes. These are represented as timespans inside of a big parent timespan as of today, allowing a frontend to present this and navigate between levels of zoom that preserve precision and resolution.

In addition to having a grand vision for functionality, careful thought is placed on the design of tempuhs and how to use it. tempuhs should be completely frontend agnostic and extendible. Generality is taken to its logical extreme in functionality and architecture both.

tempuhs consists of two pieces. tempuhs may refer to both of these pieces, or one in particular: the library which specifies how we represent our data. tempuhs-server is the Web server that makes tempuhs frontend agnostic by being a common API for communicating with the database. The tempuhs backbone will in the future need to deal with conversion between time units.

All of this is AGPLv3, and contributions would be very welcome. We would be happy to help you find your way around in the source code, or setting up your own frontend for tempuhs.

The technology currently used for tempuhs includes HSpec and HUnit for tests, the Scotty Web server, Persistent for dealing with databases (PostgreSQL for the production server and SQLite for the tests), wai for various things, The Glorious Glasgow Haskell Compiler (of course), and some other libraries.

#### 7.15.9  tttool

 Report by: Joachim Breitner Status: active development

The Ravensburger Tiptoi pen is an interactive toy for kids aged 4 to 10 that uses OiD technology to react when pointed at the objects on Ravensburger’s Tiptoi books, games, puzzles and other toys. The are programmed via binary files in a proprietary, undocumented data format.

We have reverse engineered the format, and created a tool to analze these files and generate your own. This program, called tttool, is implemented in Haskell, which turned out to be a good choice: Thanks to Haskell’s platform independence, we can easily serve users on Linux, Windows and OS X.

The implementation makes use of some nice Haskell idoms such as a monad that, while parsing a binary, creates a hierarchical description of it and a writer monad that uses lazyness and MonadFix to reference positions in the file “before” these are determined.

#### 7.15.10  Transient

 Report by: Alberto Gomez Corona Status: active development

Transient is a new way to manage continuations for the creation of high level effects like event handling, backtracking, indetermism, thread control. With this mechanism it is possible to create combinators that permit newcomers to Haskell to program at a higher level that was not previously possible. Transient programs look like specifications.

The impedance mismatch between specifications and programming comes from the fact that requirement descriptions manage similar concepts, but at a higher level: For example: this specification description: "the query processor will send request for each data source and filter the results according with the provided function"

A specification like this is described as a sequence of steps, as if the functionality were a single process, but really it implies many threads, synchronization, event handling, possibly undoing actions under some conditions, stopping on some condition etc.

Transient permits to write a monadic sequence that express this requirement with a one-to-one correspondence, since the effects of parallelization, event handling, thread management, and indeterminism are included and are managed automatically. a monadic or applicative expression in Transient may receive events in the middle of the sequence and may dispatch threads for these events and yet externally it is a single expression.

Transient uses a different way to produce effects: A transient statement can access the continuations that are scheduled in the sequence after himself. Therefore it can add, execute them when an event arrives or store then in state, so that other statements can make use of them later, so combinations of statements can change the execution flow.

Future work:

Transient will be the base EDSL for both MFlow and HPlayground.

#### 7.15.11  gipeda

 Report by: Joachim Breitner Status: active development

Gipeda is a a tool that presents data from your program’s benchmark suite (or any other source), with nice tables and shiny graphs. Its name is an abbreviation for “Git performance dashboard” and highlights that it is aware of git, with its DAG of commit.

The implementation builds on shake and creates static files, so that hosting a gipeda site is easily possible.

Gipeda is meant to be used for GHC development, and is just waiting for the designated site at http://perf.haskell.org to go live, but can be used independently of GHC as well.

#### 7.15.12  Octohat (Stack Builders)

 Report by: Stack Builders Participants: Juan Carlos Paucar, Sebastian Estrella, Juan Pablo Santos Status: Working, well-tested minimal wrapper around GitHub’s API

Octohat is a comprehensively test-covered Haskell library that wraps GitHub’s API. While we have used it successfully in an open-source project to automate granting access control to servers, it is in very early development, and it only covers a small portion of GitHub’s API.

Octohat is available on Hackage, and the source code can be found on GitHub.

We have already received some contributions from the community for Octohat, and we are looking forward to more contributions in the future.

#### 7.15.13  git-annex

 Report by: Joey Hess Status: stable, actively developed

git-annex allows managing files with git, without checking the file contents into git. While that may seem paradoxical, it is useful when dealing with files larger than git can currently easily handle, whether due to limitations in memory, time, or disk space.

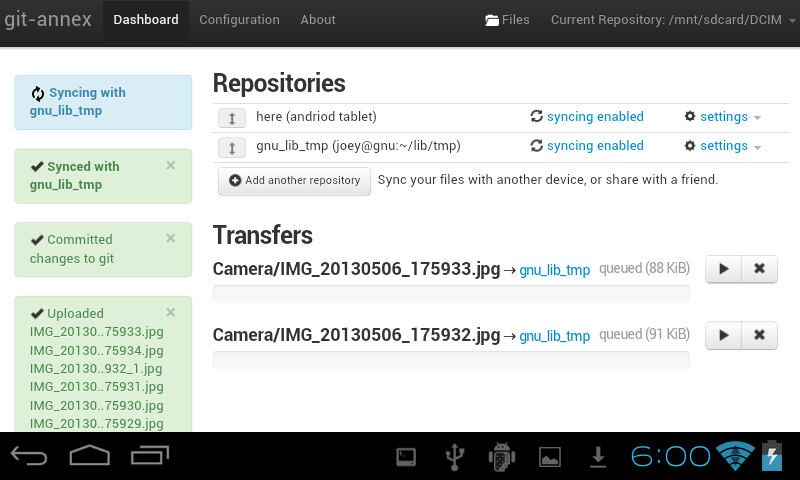

As well as integrating with the git command-line tools, git-annex includes a graphical app which can be used to keep a folder synchronized between computers. This is implemented as a local webapp using yesod and warp.

git-annex runs on Linux, OSX and other Unixes, and has been ported to Windows. There is also an incomplete but somewhat usable port to Android.

Five years into its development, git-annex has a wide user community. It is being used by organizations for purposes as varied as keeping remote Brazilian communities in touch and managing Neurological imaging data. It is available in a number of Linux distributions, in OSX Homebrew, and is one of the most downloaded utilities on Hackage. It was my first Haskell program.

At this point, my goals for git-annex are to continue to improve its foundations, while at the same time keeping up with the constant flood of suggestions from its user community, which range from adding support for storing files on more cloud storage platforms (around 20 are already supported), to improving its usability for new and non technically inclined users, to scaling better to support Big Data, to improving its support for creating metadata driven views of files in a git repository.

At some point I’d also like to split off any one of a half-dozen general-purpose Haskell libraries that have grown up inside the git-annex source tree.

#### 7.15.14  openssh-github-keys (Stack Builders)

 Report by: Stack Builders Participants: Justin Leitgeb Status: A library to automatically manage SSH access to servers using GitHub teams

It is common to control access to a Linux server by changing public keys listed in the authorized_keys file. Instead of modifying this file to grant and revoke access, a relatively new feature of OpenSSH allows the accepted public keys to be pulled from standard output of a command.

This package acts as a bridge between the OpenSSH daemon and GitHub so that you can manage access to servers by simply changing a GitHub Team, instead of manually modifying the authorized_keys file. This package uses the Octohat wrapper library for the GitHub API which we recently released.

openssh-github-keys is still experimental, but we are using it on a couple of internal servers for testing purposes. It is available on Hackage and contributions and bug reports are welcome in the GitHub repository.

While we don’t have immediate plans to put openssh-github-keys into heavier production use, we are interested in seeing if community members and system administrators find it useful for managing server access.

#### 7.15.15  propellor

 Report by: Joey Hess Status: actively developed

Propellor is a configuration management system for Linux that is configured using Haskell. It fills a similar role as Puppet, Chef, or Ansible, but using Haskell instead of the ad-hoc configuration language typical of such software. Propellor is somewhat inspired by the functional configuration management of NixOS.

A simple configuration of a web server in Propellor looks like this:

webServer :: Host
webServer = host "webserver.example.com"
& ipv4 "93.184.216.34"
& staticSiteDeployedTo "/var/www"
requires Apt.serviceInstalledRunning "apache2"
onChange Apache.reloaded
staticSiteDeployedTo :: FilePath -> Property NoInfo

There have been many benefits to using Haskell for configuring and building Propellor, but the most striking are the many ways that the type system can be used to help ensure that Propellor deploys correct and consistent systems. Beyond typical static type benefits, GADTs and type families have proven useful. For details, see http://propellor.branchable.com/posts/

An eventual goal is for Propellor to use type level programming to detect at compile time when a host has eg, multiple servers configured that would fight over the same port. Moving system administration toward using types to prove correctness properties of the system.

Another exciting possibility is using Propellor to not only configure existing Linux systems, but to manage their entire installation process. This has already been prototyped in a surprisingly small amount of added code (under 200 lines), which can replace arbitrary Linux systems with clean re-installs described entirely by Propellor’s config.hs.

#### 7.15.16  dimensional: Statically Checked Physical Dimensions

 Report by: Björn Buckwalter Participants: Douglas McClean Status: active

Dimensional is a library providing data types for performing arithmetics with physical quantities and units. Information about the physical dimensions of the quantities/units is embedded in their types, and the validity of operations is verified by the type checker at compile time. The boxing and unboxing of numerical values as quantities is done by multiplication and division with units. The library is designed to, as far as is practical, enforce/encourage best practices of unit usage within the frame of the SI. Example:

d :: Fractional a => Time a -> Length a
d t = a / _2 * t ^ pos2
where a = 9.82 *~ (meter / second ^ pos2)

The dimensional library currently has three incarnations:

• dimensional – The “classic” dimensional library released in 2006 is based on multi-parameter type classes and functional dependencies. It is stable with units being added on an as-needed basis. The primary documentation is the literate Haskell source code.

• dimensional-tf – In January 2012 a port of dimensional using type families was released.

• dimensional-dk – Recent activities have been focused around a port of dimensional using the data kinds and closed type families introduced in GHC 7.8. dimensional-dk improves upon classic dimensional and dimensional-tf in virtually every way (including proper Haddock documentation!) with only minimal impact to the API.

## 8  Commercial Users

### 8.1  Well-Typed LLP

 Report by: Andres Löh Participants: Duncan Coutts

Well-Typed is a Haskell services company. We provide commercial support for Haskell as a development platform, including consulting services, training, and bespoke software development. For more information, please take a look at our website or drop us an e-mail at <info at well-typed.com>.

We are working for a variety of commercial clients, but naturally, only some of our projects are publicly visible.

Austin has been working hard to help get GHC-7.8 released.

On behalf of the Industrial Haskell Group (IHG) (→8.4), we are currently working on tasks related to Hackage 2 and Cabal.

We continue to be involved in the community, maintaining several packages on Hackage and giving talks at a number of conferences. Some of our recent projects are available online, such as for example Edsko’s ghc-events-analyze tool, or Adam’s talk about overloaded record fields in Haskell (links below).

We are continuing to offer training services. We offer regular courses in London (the next course dates are in July and in October), and on-demand on-site training courses elsewhere as well.

We are of course always looking for new clients and projects, so if you have something we could help you with, just drop us an e-mail.

### 8.2  Bluespec Tools for Design of Complex Chips and Hardware Accelerators

 Report by: Rishiyur Nikhil Status: Commercial product; free for academia

Bluespec, Inc. provides an industrial-strength language (BSV) and tools for high-level hardware design. Components designed with these are shipping in some commercial smartphones and tablets today.

BSV is used for all aspects of ASIC and FPGA design — specification, synthesis, modeling, and verification. Digital circuits are described using a notation with Haskell semantics, including algebraic types, polymorphism, type classes, higher-order functions and monadic elaboration. Strong static checking is also used to support discipline for multiple clock-domains and gated clocks. The dynamic semantics of a such circuits are described using Term Rewriting Systems (which are essentially atomic state transitions). BSV is applicable to all kinds of hardware systems, from algorithmic “datapath” blocks to complex control blocks such as processors, DMAs, interconnects, and caches, and to complete SoCs (Systems on a Chip).

Perhaps uniquely among hardware-design languages, BSV’s rewrite rules enable design-by-refinement, where an initial executable approximate design is systematically transformed into a quality implementation by successively adding functionality and architectural detail.

Before synthesizing to hardare, a circuit description can be executed and debugged in Bluesim, a fast simulation tool. Then, the bsc tool compiles BSV into high-quality Verilog, which is then further synthesized into netlists for ASICs and FPGAs using standard synthesis tools. There are extensive libraries and infrastructure components to make it easy to build FPGA-based accelerators for compute-intensive software.

Bluespec also provides implementations and development environments for CPUs based on the U.C. Berkeley RISC-V instruction set (www.riscv.org).

#### Status and availability

BSV tools have been available since 2004, both commercially and free for academic teaching and research. It is used in a several leading universities (incl. MIT, U.Cambridge, and IIT Chennai) for computer architecture research.

• Types, Functional Programming and Atomic Transactions in Hardware Design, R.S. Nikhil, in In Search of Elegance in the Theory and Practice of Computation, Essays dedicated to Peter Buneman (Festschrift), Springer-Verlag Lecture Notes in Computer Science, LNCS 8000, pp.418-431, 2013.

• Abstraction in Hardware System Design, R.S. Nikhil, in Communications of the ACM, 54:10, October 2011, pp. 36-44.

• BSV by Example, R.S. Nikhil and K. Czeck, 2010, book available on Amazon.com (or free PDF from Bluespec, Inc.)

• http://bluespec.com/SmallExamples/index.html: from BSV by Example.

• http://www.cl.cam.ac.uk/~swm11/examples/bluespec/: Simon Moore’s BSV examples (U. Cambridge).

• http://csg.csail.mit.edu/6.375: Complex Digital Systems, MIT courseware.

### 8.3  Haskell in the industry in Munich

Haskell is used by several companies specializing in the development of reliable software and hardware, for example for the automotive industry in Munich. It is also in use by the developers of medical software which needs assure the integrity of data processing algorithms. It is also used by new media and internet companies. You may contact the author of this report (<haskell.consultancy at gmail.com>) for details.

Google is using Haskell in Ganeti (http://code.google.com/p/ganeti/), a tool for managing clusters of virtual servers built on top of Xen and KVM. There is a mailing list (http://groups.google.com/group/ganeti) which is the official contact to the team.

There are lots of presentations about Ganeti online (http://downloads.ganeti.org/presentations/), and some of them are accompanied by videos to be found with a quick search on the internet.

#### Energy Flow Analysis – Ingenieurbüro Guttenberg & Hördegen

The Engineering Office provides services and tools to companies designing and operating smart systems with energy management: Smart Grids, Smart Houses, Smart Production, and so on. Smart systems are complex: efficiency is only one aspect in a challenging system design. We want to make measurement and optimisation of overall system efficiency as comfortable and easy as possible. The objective is to provide support in choosing between system functionality, performance, safety, and reliability as well as energy efficiency. We provide a support service for the whole development chain, starting with specification, through system design and simulation to system implementation and validation. The advantage of our approach is that we can directly model, investigate and optimise energy flow. This opens new possibilities, such as better optimisation of efficiency, operation, and design for local grids containing electrochemical storage, thermal storage, heat pumps, block heat and power units and so on.

Since it combines good performance and parallelization features while providing a very high level of assurance, we have chosen to execute our technology with Haskell.

#### Informatik Consulting Systems AG

ICS AG (http://ics-ag.de), with 11 offices in Germany, use Haskell for their software, as it is a good fit for their domain, which is simulation, safety, and business-critical systems. It affords ICS a competitive edge over the market. Industries ICS work with include advanced technologies, automotive, industrial solutions, and transportation and they have an impressive list of customers (http://ics-ag.de/kunden.html).

The author of this report runs a Haskell consultancy. Established in 2008, the business provides full-stack support for industries ranging from finance and media to medical and electronics design and automation, with a permanent focus on functional programming. We have a strong background in statistics and operations research. The current trend in the industry is the migration of monolithic legacy software in C, C#, Python, Java, or PHP towards a functional, service-oriented architecture, with on-site training of personnel in the new programming paradigm. Another trend is design of hard realtime applications for industrial use. Further information can be requested via email (<haskell.consultancy at gmail.com>).

#### Funktionale Programmierung – Dr. Heinrich Hördegen

Funktionale Programmierung - Dr. Heinrich Hördegen (http://funktional.info) is a Haskell and functional programming software consultancy located in Munich.

Dr. Hördegen has a lot of experience in software engineering and has been an advocate of functional programming since 2005. It follows that during his doctoral thesis at the LORIA (http://www.loria.fr) he was able to design and implement compiler modules for the AVISPA project (http://www.avispa-project.org/) using OCaml.

Dr. Hördegen has been using Haskell as his main technology to implement robust and reliable software since 2009. In his role co-founder and CTO of Ingenieurbüro Guttenberg & Hördegen (http://www.energiefluss.info) he leads the development of proprietary software for energy flow analysis. This complex system is comprised of 50000 lines of code, distributed into 130 modules.

Some of Dr. Hördegen’s favourite things about Haskell are algebraic data types, which simplify symbolic computation, the amazing speed Haskell can provide during number crunching, the powerful parallelization capabilities Haskell provides, and finally Cloud Haskell, which lets you easily distribute computations onto whole clusters.

#### codecentric AG

Here at codecentric (https://www.codecentric.de/), we believe that more than ever it’s important to keep our tools sharp in order to provide real value to our customers. The best way to do this is to provide software expertise and an environment in which people can freely express their ideas and develop their skills. One of the results is codecentric Data Lab, where mathematicians, data scientists and software developers join forces to live up to the big data hype. Another is the Functional Institute (http://clojureworkshop.com/), which helps to spread the word about functional programming with Clojure and Haskell.

We provide services in functional programming in Clojure and Haskell as well as services for Big Data projects, ranging from project support and knowledge sharing to bespoke software development and project management. We are over 200 employees strong in 10 offices around Germany and Europe. You may contact Alex Petrov (<alex.petrov at codecentric.de>) with any enquiries.

 Report by: Andres Löh

The Industrial Haskell Group (IHG) is an organization to support the needs of commercial users of Haskell.

The main activity of the IHG is to fund work on the Haskell development platform. It currently operates two schemes:

• The collaborative development scheme pools resources from full members in order to fund specific development projects to their mutual benefit.

• Associate and academic members contribute to a separate fund which is used for maintenance and development work that benefits the members and community in general.

Projects the IHG has funded in the past years include work on Hackage 2, Cabal and cabal-install, and GHC itself.

Details of the tasks undertaken by the IHG are appearing on the Well-Typed (→8.1) blog, on the IHG status page and on standard communication channels such as the Haskell mailing list.

In the past six months, three new associate members have joined the IHG: Jon Kristensen, alephcloud and OTAS Technologies.

The collaborative development scheme is running continuously, so if you are interested in joining as a member, please get in touch. Details of the different membership options (full, associate, or academic) can be found on the website.

We are very interested in new members.

### 8.5  Better

 Report by: Carl Baatz

Better provides a platform for delivering adaptive online training to students and employees.

Companies and universities work with us to develop courses which are capable of adapting to individual learners. This adaptivity is based on evidence we collect about the learner’s understanding of the course material (primarily by means of frequent light-weight assessments). These courses run on our platform, which exposes a (mobile-compatible) web interface to learners. The platform also generates course statistics so that managers/teachers can monitor the progress of the class taking the course and evaluate its effectiveness.

The backend is entirely written in Haskell. We use the snap web framework and we have a storage layer written on top of postgres-simple which abstracts data retrieval, modification, and versioning. The choice of language has worked out well for us: as well as the joy of writing Haskell for a living, we get straightforward deployment and extensive server monitoring courtesy of ekg. Using GHC’s profiling capabilities, we have also managed to squeeze some impressive performance out of our deployment.

The application-specific logic is all written in Haskell, as is most of the view layer. As much rendering as possible is performed on the backend using blaze-html, and the results are sent to a fairly thin single-page web application written in Typescript (which, while not perfect, brings some invaluable static analysis to our front-end codebase).

The company is based in Zurich, and the majority of the engineering team are Haskellers. We enjoy a high level of involvement with the Zurich Haskell community and are delighted to be able to host the monthly HaskellerZ user group meetups and the yearly ZuriHac hackathon.

### 8.6  Keera Studios LTD

 Report by: Ivan Perez

Keera Studios Ltd. is a game development studio currently working on Android games using Haskell. We have published the first commercial game for Android written in Haskell, now available on Google Play (https://goo.gl/cM1tD8).

We have also shown a breakout-like game running on a Android tablet (http://goo.gl/53pK2x), using hardware acceleration and parallelism. The desktop version of this game additionally supports Nintendo Wiimotes and Kinect. This proves that Haskell truly is viable option for professional game development, both for mobile and for desktop.

We have developed GALE, a DSL for graphic adventures, together with an engine and a basic IDE that allows non-programmers to create their own 2D graphic adventure games without any knowledge of programming. Supported features include multiple character states and animations, multiple scenes and layers, movement bitmasks (used for shortest-path calculation), luggage, conversations, sound effects, background music, and a customizable UI. The IDE takes care of asset management, generating a fully portable game with all the necessary files. The engine is multiplatform, working seamlessly on Linux, Windows and Android. We are currently beta-testing GALE games on Google Play.

We have released Keera Hails, the reactive library we use for desktop GUI applications, as Open Source (http://git.io/vTvXg). Keera Hails is being actively developed and provides integration with Gtk+, network sockets, files, FRP Yampa signal functions and other external resources. Keera Hails also addresses common problems in Model-View-Controller, providing an application skeleton with a scalable architecture and thread-safe access to the application’s internal model. Accompanying libraries provide standarised solutions for common features such as configuation files and internationalisation. We have used this framework in commercial applications (including but not limited to GALE IDE), and in the Open-Source posture monitor Keera Posture (http://git.io/vTvXy).

We are committed to using Haskell for all our operations. For games we often opt for the Arrowized Functional Reactive Programming Domain-Specific Language Yampa (http://git.io/vTvxQ) or for Keera GALE. For desktop GUI applications we use our own Keera Hails (http://git.io/vTvXg). To create web applications and internal support tools we use Yesod, and have recently put in production a project management, issue tracking and invoicing web application to facilitate communication with our clients.

### 8.7  plaimi

 Report by: Alexander Berntsen

plaimi are an omnium-gatherum of free software researchers and hackers from Norway.

Haskell is the primary language used at plaimi. We use it for all our currently active development projects. Our development computers and servers all use Gentoo Linux, and consequently Gentoo-Haskell. We contribute back to the Haskell and Gentoo ecosystems, and have upstream patches for many of the libraries and tools that we use. One of the researchers at plaimi is on the Gentoo development team, and has contributed to both Gentoo-Haskell and the package manager it uses, Portage.

Our website is https://secure.plaimi.net/. Contact information may be obtained there. We are currently looking for work. Do you have any? Get in touch! We’d also love to hear from anyone that has questions, ideas or patches for our projects.

### 8.8  Stack Builders

 Report by: Stack Builders Status: software consultancy

Stack Builders is an international Haskell and Ruby agile software consultancy with offices in New York, United States, and Quito, Ecuador.

• We organize Quito Lambda, a monthly meetup about functional programming in Quito, Ecuador.

• We maintain several packages in Hackage including hapistrano, inflections, octohat, openssh-github-keys, and twitter-feed.

• We talk about Haskell at universities and events such as Lambda Days and BarCamp Rochester.

For more information, take a look at our website or get in touch with us at info@stackbuilders.com.

### 8.9  Optimal Computational Algorithms, Inc.

 Report by: Christopher Anand

OCA develops high-performance, high-assurance mathematical software using Coconut (COde CONstructing User Tool), a hierarchy of DSLs embedded in Haskell, which were originally developed at McMaster University. The DSLs encode declarative assembly language, symbolic linear algebra, and algebraic transformations. Accompanying tools include interpreters, simulators, instruction schedulers, code transformers (both rule-based and ad-hoc) and graph and schedule visualizers.

To date, Coconut math function libraries have been developed for five commercial architectures. Taking advantage of Cocont’s symbolic code generation, software for reconstructing multi-coil Magnetic Resonance Images was generated from a high-level mathematical specification. The implementation makes full use of dual-CPUs, multiple cores and SIMD parallelism, and is licensed to a multi-national company. The specification is transformed using rules for symbolic differentiation, algebraic simplification and parallelization. The soundness of the generated parallelization can be verified in linear time (measured with respect to program size).

## 9  Research and User Groups

### 9.1  Haskell at Eötvös Lorand University (ELTE), Budapest

 Report by: PALI Gabor Janos Status: ongoing

#### Education

We are again glad to report that there are many different courses on Haskell at Eötvös Lorand University, Faculty of Informatics. Currently, we are offering the following courses in that regard:

• Functional programming for first-year Hungarian undergraduates in Software Technology and second-year Hungarian teacher of informatics students, both as part of their official curriculum.

• An additional semester on functional programming with Haskell, where many of the advanced concepts are featured. This is an optional course for Hungarian undergraduate and master’s students, supported by the Eotvos Jozsef Collegium.

• Advanced functional programming for Hungarian and foreign-language master’s students in Software Technology, supported by the fund TAMOP-4.1.2.A/1-11/1-2011-0052. The curriculum features discussion of parallel and concurrent programming, property-based testing, purely functional data structures, efficient I/O implementations, embedded domain-specific languages, and reactive programming.

In addition to these, there is also a Haskell-related course, Type Systems of Programming Languages, taught for Hungarian master’s students in Software Technology. This course gives a more formal introduction to the basics and mechanics of type systems applied in many statically-typed functional languages.

For teaching some of the courses mentioned above, we have been using an interactive online evaluation and testing system, called ActiveHs. It contains several dozens of systematized exercises, and through that, some of our course materials are available there in English as well.

Besides teaching Haskell, some effort has been made to restart our introductory course on Agda with an English-language tutorial. It is based on the works of Péter Diviánszky and Ambrus Kaposi from the previous years, and the chapters for the first semester has been reviewed and improved by Gábor. Matthias Troffaes has moved Péter’s original darcs repository to GitHub for more visibility. Note that the changes made to the lectures notes used at the course has not yet been merged into the git repository, but it will done soon as time permits. We are hoping that our tutorial may be of use for other universities.

Our homebrew online assignment management system, "BE-AD" keeps working on for the third semester starting from this February. The BE-AD system is implemented almost entirely in Haskell, based on the Snap web framework and Bootstrap. Its goal to help the lecturers with scheduling course assignments and tests, and it can automatically check the submitted solutions as an option. It currently has over 1,100 users and it provides support for 14 courses at the department, including all the Haskell and Agda ones. This is still in an alpha status yet so it is not available on Hackage as of yet, only on GitHub, but so far it has been performing well, especially in combination with ActiveHs.

Gábor also regularly advises bachelor’s and master’s theses in Haskell, sometimes in cooperation with Csaba Hruska and Péter Diviánszky, the developers of LambdaCube 3D, on related topics.

### 9.2  Artificial Intelligence and Software Technology at Goethe-University Frankfurt

 Report by: David Sabel Participants: Manfred Schmidt-Schauß

Semantics of Functional Programming Languages. Extended call-by-need lambda calculi model the semantics of Haskell. In our research we analyze the semantics of those calculi with a special focus on the correctness of program analyses and program transformations. Our results include the correctness of strictness analysis by abstract reduction, results on the equivalence of the call-by-name and call-by-need semantics, correctness of program transformations w.r.t. contextual equivalence, and investigations on the conservativity of language extensions. Recently, we analyzed a polymorphically typed core language of Haskell which uses System F-polymorphism, and we analyzed the question whether program transformations are optimizations, i.e. whether they improve the time resource behavior. We showed that common subexpression elimination is indeed an improvement (which seems to be obvious, but its proof was an open problem for several years). We also showed that our notion of improvement is (asymptotically) resource equivalent to the improvement theory developed by Moran &Sands in an untyped setting.

We also established theoretical results like completeness of applicative bisimilarity w.r.t. contextual equivalence, and unsoundness of applicative bisimilarity in nondeterministic languages with letrec.

We also use Haskell to develop automated tools to show correctness of program transformations, where the method is syntax-oriented and computes so-called forking and commuting diagrams by a combination of several unification algorithms. Also automated termination provers for term rewrite systems are used in a part of the automation. Future research goals are to automate correctness proofs of program translations as they appear in compilers.

Concurrency. We analyzed a higher-order functional language with concurrent threads, monadic IO, MVars and concurrent futures which models Concurrent Haskell. We proved correctness of program transformations, correctness of an abstract machine, and we proved that this language conservatively extends the purely functional core of Haskell. In a similar program calculus we proved correctness of a highly concurrent implementation of Software Transactional Memory (STM) and developed an alternative implementation of STM Haskell which performs quite early conflict detection.

Grammar based compression. This research topic focuses on algorithms on grammar compressed data like strings, matrices, and terms. Our goal is to reconstruct known algorithms on uncompressed data for their use on grammars without prior decompression. We implemented several of those algorithms as a Haskell library including efficient algorithms for fully compressed pattern matching.

### 9.3  Functional Programming at the University of Kent

 Report by: Olaf Chitil

The Functional Programming group at Kent is a subgroup of the Programming Languages and Systems Group of the School of Computing. We are a group of staff and students with shared interests in functional programming. While our work is not limited to Haskell, we use for example also Erlang and ML, Haskell provides a major focus and common language for teaching and research.

Our members pursue a variety of Haskell-related projects, several of which are reported in other sections of this report. Three new PhD students joined the group last September. Stephen Adams is working on advanced refactoring of Haskell programs. Andreas Reuleaux is working on refactoring dependently typed functional programs. Maarten Faddegon is working on making tracing for Haskell practical and easy to use. In June he will talk at PLDI 2015 about “Algorithmic Debugging of Real-World Haskell Programs: Deriving Dependencies from the Cost Centre Stack”. Olaf Chitil is working on tracing, including the further development of the Haskell tracer Hat, and on type error debugging. Scott Owens is working on verified compilers for the (strict) functional language CakeML. Currently Colin Runciman from the University of York is visiting the PLAS group during his study leave.

We are always looking for more PhD students. We are particularly keen to recruit students interested in programming tools for verification, tracing, refactoring, type checking and any useful feedback for a programmer. The school and university have support for strong candidates: more details at http://www.cs.kent.ac.uk/pg or contact any of us individually by email.

We are also keen to attract researchers to Kent to work with us. There are many opportunities for research funding that could be taken up at Kent, as shown in the website http://www.kent.ac.uk/researchservices/sciences/fellowships/index.html. Please let us know if you’re interested in applying for one of these, and we’ll be happy to work with you on this.

Finally, if you would like to visit Kent, either to give a seminar if you’re passing through London or the UK, or to stay for a longer period, please let us know.

### 9.4  Haskell at KU Leuven, Belgium

 Report by: Tom Schrijvers

Functional Programming, and Haskell in particular, is an active topic of research and teaching in the Declarative Languages & Systems group of KU Leuven, Belgium.

Teaching Haskell is an integral part of the curriculum for both informatics bachelors and masters of engineering in computer science. In addition, we offer and supervise a range of Haskell-related master thesis topics.

Research We actively pursue various Haskell-related lines of research. Some recent and ongoing work:

• Steven Keuchel works on InBound, a Haskell-like DSL for specifying abstract syntax trees with binders.
• George Karachlias works on extending GHC’s pattern match checker to deal with GADTs, in collaboration with Dimitrios Vytiniotis and Simon Peyton Jones.
• Alexander Vandenbroucke extends the nondeterminism monad with tabulation, a form of memoization “on steroids” from logic programming.
• With Nicolas Wu we have recently worked on fusion for free monads to obtain efficient algebraic effect handlers. See our forthcoming MPC 2015 paper.
• With Mauro Jaskelioff and Exequiel Rivas we launch a new slogan:

Nondeterminism monads are just near-semirings in the category of endofunctors, what’s the problem?

See our forthcoming paper at PPDP 2015.

Leuven Haskell User Group We host the Leuven Haskell User Group, which has held its first meeting on March 3, 2015. The group meets roughly every other week and combines formal presentations with informal discussion. For more information: http://groups.google.com/forum/#!forum/leuven-haskell

### 9.5  fp-syd: Functional Programming in Sydney, Australia

 Report by: Erik de Castro Lopo Participants: Ben Lippmeier, Shane Stephens, and others

We are a seminar and social group for people in Sydney, Australia, interested in Functional Programming and related fields. Members of the group include users of Haskell, Ocaml, LISP, Scala, F#, Scheme and others. We have 10 meetings per year (Feb–Nov) and meet on the third (usually, sometimes fourth) Wednesday of each month. We regularly get 30–40 attendees, with a 70/30 industry/research split. Talks this year have included material on compilers, theorem proving, type systems, Haskell web programming, Haskell database libraries, Scala and more. We usually have about 90 mins of talks, starting at 6:30pm, then go for drinks afterwards. All welcome.

### 9.6  Functional Programming at Chalmers

 Report by: Jean-Philippe Bernardy

Functional Programming is an important component of the CSE department at Chalmers and University of Gothenburg. In particular, Haskell has a very important place, as it is used as the vehicle for teaching and numerous research projects. Besides functional programming, language technology, and in particular domain specific languages is a common aspect in our projects. We have hosted ICFP 2014 in Gothenburg this September.

Property-based testing.QuickCheck, developed at Chalmers, is one of the standard tools for testing Haskell programs. It has been ported to Erlang and used by Ericsson, Quviq, and others. QuickCheck continues to be improved. Quickcheck-based tools and related techniques are currently being developed:

• We have shown how to successfully apply QuickCheck to test polymorphic properties.
• A new exhaustive testing tool (testing-feat on Hackage) has been developed. It is especially suited to generate test cases from large groups of mutually recursive syntax tree types. A paper describing it was presented at the Haskell Symposium 2012.
• Testing Type Class Laws: the specification of a class in Haskell often starts with stating, in comments, the laws that should be satisfied by methods defined in instances of the class, followed by the type of the methods of the class. We have developed a library (ClassLaws) that supports testing such class laws using QuickCheck.

Parsing: BNFC. The BNF Converter (BNFC) is a frontend for various parser generators in various languages. BNFC is written in Haskell and is commonly used as a frontend for the Haskell tools Alex and Happy. BNFC has recently been extended in two directions:

• A Haskell backend, which offers incremental and parallel parsing capabilities, as well as the ability to parse context-free grammars in full generality, has been added to BNFC. The underlying concepts are described in a paper published at ICFP 2013.
• BNFC has been embedded in a library (called BNFC-meta on Hackage) using Template-Haskell. An important aspect of BNFC-meta is that it automatically provides quasi-quotes for the specified language. This includes a powerful and flexible facility for anti-quotation.

Parsing: Combinators. A new package for combinator-based parsing has been released on Hackage. The combinators are based on the paper Parallel Parsing Processes. The technique is based on parsing in parallel all the possibly valid alternatives. This means that the parser never “hold onto” old input. A try combinator is also superfluous.

Parsing: Natural languages.Grammatical Framework is a declarative language for describing natural language grammars. It is useful in various applications ranging from natural language generation, parsing and translation to software localization. The framework provides a library of large coverage grammars for currently fifteen languages from which the developers could derive smaller grammars specific for the semantics of a particular application.

Generic Programming.Starting with Polytypic Programming in 1995 there is a long history of generic programming research at Chalmers. Recent developments include fundamental work on parametricity. This work has led to the development of a new kind of abstraction, to generalize notions of erasure. This means that a new kind of generic programming is available to the programmer. A paper describing the idea was presented in ICFP 2013.

Our research on generic-programming is lively, as witnessed by a constant stream of publications: Testing Type Class Laws, Functional Enumeration of Algebraic Types (FEAT), Testing versus proving in climate impact research and Dependently-typed programming in scientific computing — examples from economic modelling. The last two are part of our effort to contribute to the emerging research programme in Global Systems Science.

Program Inversion/bidirectionalization. Program transformation systems that generate pairs of programs that are some sort of inverses of each other. The pairs are guaranteed to be consistent by construction with respect to certain laws. Applications include pretty-printing/parsing, XML transformation etc. The work is done in collaboration with University of Tokyo and University of Bonn.

Language-based security.SecLib is a light-weight library to provide security policies for Haskell programs. The library provides means to preserve confidentiality of data (i.e., secret information is not leaked) as well as the ability to express intended releases of information known as declassification. Besides confidentiality policies, the library also supports another important aspect of security: integrity of data. SecLib provides an attractive, intuitive, and simple setting to explore the security policies needed by real programs.

Type theory.Type theory is strongly connected to functional programming research. Many dependently-typed programming languages and type-based proof assistants have been developed at Chalmers. The Agda system (→4.1) is the latest in this line, and is of particular interest to Haskell programmers. While today’s GHC incorporates much of the dependently-typed feature set, supporting plain old Haskell means a certain amount of clunkiness. Agda provides a cleaner language, while remaining close to Haskell syntax.

Embedded domain-specific languages.The functional programming group has developed several different domain-specific languages embedded in Haskell. The active ones are:

• Feldspar (→7.13.2) is a domain-specific language for digital signal processing (DSP).
• Obsidian is a language for data-parallel programming targeting GPUs. Most recently we used Obsidian to implement an interesting variation of counting sort that also removes duplicate elements. This work was presented at FHPC 2013.

We are also working on general methods for EDSL development:

• Syntactic is a library that aims to support the definition of EDSLs. The core of the library was presented at ICFP 2012. The paper presents a generic model of typed abstract syntax trees in Haskell, which can serve as a basis for a library supporting the implementation of deeply embedded DSLs.
• Names For Free. A new technique for representing names and bindings of object languages represented as Haskell data types has been developed. The essence of the technique is to represent names using typed de Bruijn indices. The type captures exactly the context where the index is valid, and hence is as safe to use as a name. The technique was presented at Haskell Symposium 2013. We are currently extending the technique to work for proofs as well as programs.
• Circular Higher-Order Syntax We have also developed a light-weight method for generating names while building an expression with binders. The method lends itself to be used in the front end of EDSLs based on higher-order syntax. The technique was presented at ICFP 2013.
• Simple and Compositional Monad Reification A method for reification of monads (compilation of monadic embedded languages) that is both simple and composable. The method was presented at ICFP 2013.

Automated reasoning.We are responsible for a suite of automated-reasoning tools:

• Equinox is an automated theorem prover for pure first-order logic with equality. Equinox actually implements a hierarchy of logics, realized as a stack of theorem provers that use abstraction refinement to talk with each other. In the bottom sits an efficient SAT solver. Paradox is a finite-domain model finder for pure first-order logic with equality. Paradox is a MACE-style model finder, which means that it translates a first-order problem into a sequence of SAT problems, which are solved by a SAT solver.
• Infinox is an automated tool for analysing first-order logic problems, aimed at showing finite unsatisfiability, i.e., the absence of models with finite domains. All three tools are developed in Haskell.
• QuickSpec generates algebraic specifications for an API automatically, in the form of equations verified by random testing. http://www.cse.chalmers.se/~nicsma/quickspec.pdf
• Hip (the Haskell Inductive Prover) is a new tool to automatically prove properties about Haskell programs by using induction or co-induction. The approach taken is to compile Haskell programs to first order theories. Induction is applied on the meta level, and proof search is carried out by automated theorem provers for first order logic with equality.
• On top of Hip we built HipSpec, which automatically tries to find appropriate background lemmas for properties where only doing induction is too weak. It uses the translation and structural induction from Hip. The background lemmas are from the equational theories built by QuickSpec. Both the user-stated properties and those from QuickSpec are now tried to be proven with induction. Conjectures proved to be theorems are added to the theory as lemmas, to aid proving later properties which may require them. For more information, see http://web.student.chalmers.se/~danr/hipspec-atx.pdfthe draft paper.

Teaching.Haskell is present in the curriculum as early as the first year of the BSc programme. We have four courses solely dedicated to functional programming (of which three are MSc-level courses), but we also provide courses which use Haskell for teaching other aspects of computer science, such the syntax and semantics of programming languages, compiler construction, data structures and parallel programming.

### 9.7  Functional Programming at KU

 Report by: Andrew Gill Status: ongoing

Functional Programming continues at KU and the Computer Systems Design Laboratory in ITTC! The System Level Design Group (lead by Perry Alexander) and the Functional Programming Group (lead by Andrew Gill) together form the core functional programming initiative at KU. There are three major Haskell projects at KU (as well as numerous smaller ones): the GHC rewrite plugin HERMIT (→7.3.3), the Wakarusa Project (→5.1.3), and the Blank Canvas HTML5 Graphics Library (→5.2.10).

 Report by: Andres Löh

Since autumn 2014 Haskellers in Regensburg, Bavaria, Germany have been meeting roughly once per month to socialize and discuss Haskell-related topics.

Haskell beginners and experts are equally welcome. Meetings are announced on our meetup page: http://www.meetup.com/Regensburg-Haskell-Meetup/.

### 9.9  Haskell in the Munich Area

Haskell is widely used as an educational tool for both teaching students in computer science as well as for teaching industry programmers transitioning to functional programming. It is very well suited for that and there is a huge educational body present in Munich.

#### Haskell at the Ludwig-Maximilians-Universität, Munich

Following a limited test run last year which included 12 people, the Institut für Informatik (Institute for Computer Science) has switched their Programming and Modelling (http://www.tcs.ifi.lmu.de/lehre/ss-2014/promo) course from ML to Haskell. It runs during the summer semester and is frequented by 688 students. It is a mandatory course for Computer Science and Media Information Technology students as well as many students going for degrees related to computer science, e.g. Computer Linguistics (where lambda calculus is very important) or Mathematics. The course consists of a lecture and tutorial and is led by Prof. Dr. Martin Hofmann and Dr. Steffen Jost. It started on the 7th April, 2014. It is expected that 450 students will complete the course. Notably, the course is televised and is accessible at the LMU portal for Programming and Modelling (https://videoonline.edu.lmu.de/de/sommersemester-2014/5032).

Haskell is also used in Advanced Functional Programming (https://www.tcs.ifi.lmu.de/lehre/ss-2012/fun) which runs during the winter semester and is attended by 20-30 students. It is mandatory for Computer Science as well as Media Information Technology students.

Neither of these courses has any entry requirements, and you may enter the university during the summer semester, which makes them very accessible.

Any questions may be directed to Dr. Steffen Jost (<jost at tcs.ifi.lmu.de>).

#### Haskell at the Hochschule für angewandte Wissenschaften München (Academy for applied sciences Munich)

Haskell is taught in two courses at the College: Functional Programming and Compiler Design. Both courses consist of lectures and labs. Prof. Dr. Oliver Braun has brought Haskell to the school and has been using it during the last year for both courses; before that he taught Haskell at FH Schmalkalden Thüringen (http://www.fh-schmalkalden.de/) for 3.5 years.

Compiler Design (http://ob.cs.hm.edu/lectures/compiler) is a compulsory course taught, depending on the group, using Haskell, Scheme, or Java. The Haskell version is frequented by over 40 students. Part of the note depends on a compiler authored in Haskell.

Functional Programming (http://ob.cs.hm.edu/lectures/fun) is a new, non-compulsory course attended by 20 students, taught with Haskell. The grade depends among others on an exam in Haskell knowledge and a project authored in Haskell with the Yesod web framework. It is taught with Learn You a Haskell and teaches practical skills such as Cabal, Haddock, QuickCheck, HUnit, Git, and Yesod. The school department’s website itself is in Snap.

Dr. Oliver Braun has started using Haskell in 1997, when it became the first programming language he’s used during his studies. He has later used Haskell during his thesis and afterwards his dissertation. He finds Haskell great for teaching. Oliver Braun can be reached via email (<ob at cs.hm.edu>).

#### Haskell as a teaching tool in the industry

Haskell is used in Munich to teach functional programming to industrial programmers. Since it uses the same basic programming model, it can also be used as a simple learning tool to introduce people to Scala. That is because both are based on System F and Haskell has a very clean, minimal implementation of it. It has been successfully used to teach a team of 10 PHP programmers the basics of functional programming and Scala and, together with other educational tools, get them up and running within a couple months, during which time the team remained productive. This approach makes it easy for companies to switch from the likes of PHP, Java, .NET, or C#to functional programming (Haskell, Scala, Clojure). At the same time the project switched to SOA (service oriented architecture) using the Twitter scala libraries. Having understood the basics of FP in Haskell, the team could easily move onto the more complicated task of understanding the more unique and intricate parts of Scala that correspond to extensions to System F while being able to understand Scala’s syntax. You may contact the author of this report (<haskell.consultancy at gmail.com>) for details.

There are several meetups dedicated to Haskell in Munich. The organizers have initiated cooperation in order to build and support the local community, as well as the community in Germany. There is something related to Haskell happening every week.

The organizers would like to establish contact with other Haskell communities in Germany as well as the whole world. You may write to the Haskell Hackathon organizer (<haskell.hackathon at gmail.com>). As of 2014, it is known that there is Haskell activity in Berlin, Cologne (Köln), Düsseldorf, Frankfurt am Main, Halle, Hamburg, and Stuttgart, as well as in Austria, Switzerland and the Czech Republic. If you’re from one of those communities, please write us! The Munich community welcomes any new connections from other locations.

The community receives notable guests, such as:

• Reinhard Zumkeller, one of the regular contributors to the OEIS. Reinhard likes to use Haskell for work with integer sequences.
• Lars R. Hupel, the maintainer of scalaz. Lars teaches with Haskell at the local university and enjoys advanced topics in type systems and category theory.
• Andres Löh, co-founder of Well-Typed LLP. Andres always brings up very practical discussions on the use of Haskell. For example, he has recently held a presentation on the Par monad.
• Heiko Seeberger from . Heiko is interested in all sorts of functional programming and loves Haskell for its simplicity and consistency.
• many others which the author of this report could not reach for comment before the publication due to time constraints.

The community is very lively and there are many initiatives being worked on. For example, actively popularizing Haskell in the local industry, creating a network of companies, programmers, and informational events. The author of this report may be reached for more information (<haskell.consultancy at gmail.com>).

The Haskell Hackathon is a small meeting for people who would like to build their Haskell skillset. People bring their laptops and work on one of the proposed topics together, sharing experience and teaching each other. Topics range from very easy (if you don’t know Haskell, you may come and the organizer will teach you the basics one on one) through intermediate (how to best set up the dev env, how to read the papers, how to use important libraries) to very advanced (free applicatives, comonads). Defocus is discouraged (subjects not related to Haskell are limited). The operating language is German but if you speak any other language you are welcome to join us.

The Hackathon is organized by the author of this report (<haskell.consultancy at gmail.com>) and is currently in its second year. It is frequented by the staff and students of the local universities, industry programmers, as well as Haskell enthusiasts. You may contact the Hackathon with any questions via email (<haskell.hackathon at gmail.com>).

We keep track of ideas we would like to explore during the Haskell Hackathon (http://haskell-hackathon.no-ip.org/ideen.html). Any and all new questions are welcome!

The Haskell Meetup, also called Haskell Stammtisch (which directly translates to: Haskell regulars table) is a social event for the Haskell community. It is the original Haskell event in Munich. Everyone is welcome (even non-Haskell programmers!). It happens once a month, usually at Cafe Puck which is a pub in one of the cooler parts of Munich, where the members can eat schnitzel and drink beer while chatting about topics ranging from Haskell itself to abstract mathematics, industrial programming, and so on. The group is very welcoming and they make you feel right at home. The Meetup attracts between 15 and 20 guests and there’s a large proportion of regulars. Attendance ranges from students, through mathematicians (notably the OEIS has a presence), industry programmers, physicists, and engineers. The Meetup receives international guests and sometimes we hold lectures.

The Haskell Meetup, established 29th September 2011 by Heinrich Hördegen. It is sponsored by Funktionale Programmierung Dr. Heinrich Hördegen (http://funktional.info) and Energy Flow Analysis – Ingenieurbüro Guttenberg & Hördegen (http://www.energiefluss.info).

#### Munich Lambda

Munich Lambda (http://www.meetup.com/Munich-Lambda/) was founded on Jun 28, 2013 by Alex Petrov. There have been 12 events so far, on topics including Haskell, Clojure, and generally functional programming, as well as Emacs. Meetups on the topic of Haskell occur every month to two months.

Typically, the meetup begins with a short introductory round where the visitors can talk about their work or hobbies and grab some food (provided by sponsors), followed by couple of presentations, and topped off by an informal discussion of relevant topics and getting to know each other. It is a great opportunity to meet other likeminded people who like Haskell or would like to start out with it.

Munich Lambda is sponsored by codecentric (http://www.codecentric.de/) and StyleFruits (http://www.stylefruits.de).

#### Mailing lists in Munich

There are two mailing lists in use: https://lists.fs.lmu.de/mailman/listinfo/high-order-munich and http://mailman.common-lisp.net/cgi-bin/mailman/listinfo/munich-lisp.

The lists are used for event announcements as well as to continue discussions stemming from recent events. It is usually expected that anyone subscribed to one is also on the other, but conversations normally happen only on one or the other. There are 59 subscribers to high-order-munich.

#### ZuriHac 2014, Budapest Hackathon 2014, and the Munich Hackathon

There is a group of people going to ZuriHac 2014 (http://www.haskell.org/haskellwiki/ZuriHac2014). We are currently planning the logistics. If you would like to join us, you may write to the high-order-munich mailing list (https://lists.fs.lmu.de/mailman/listinfo/high-order-munich). Some people going to ZuriHac want to visit Munich first and will be received by the Munich community. There will be events during the week before ZuriHac. Boarding in Munich is inexpensive; the bus to Zurich is only 15 Euro and you may travel with a group of Haskell enthusiasts. There is a lot to see and visit in Munich. It is an easy travel destination as the Munich Airport has direct connections with most large airports in the world. Zurich is 312 kilometers (194 miles) away and no passport is necessary to travel from Munich to Zurich.

In addition, there is a group going to the Budapest Hackathon (http://www.haskell.org/haskellwiki/BudapestHackathon2014), which is a week before ZuriHac. To connect those two together, both geographically and in time, a Munich Lambda event is planned for the 4th of June in Munich. The travel is very cheap (the bus tickets from Budapest to Munich and from Munich to Zurich are on the order of 30 Euro). This way people can attend all three, completing what has been nicknamed the Haskell World Tour 2014. For more information you may contact the organizer of the Haskell Hackathon in Munich (<haskell.hackathon at gmail.com>). You may have fun, meet people from three huge Haskell communities, travel together, and see the world, all in one week!

#### Halle

There is a group of Haskell members going to HaL-9 in Halle (http://www.haskell.org/pipermail/haskell/2014-March/024115.html), which is 439 kilometers (273 miles) away. Henning Thielemann (<schlepptop at henning-thielemann.de>), the event organizer, is in charge of car pooling for visitors coming from all locations.
